Embed Array In Visual Basic 6 (VBA) code

Edit ArticleEdit Article

In some cases it might be required to embed file or data directly into the Visual Basic 6 project or VBA macro. Resources are not supported in Visual Basic. The below functions demonstrate how to embed the binary array into the macro without the need to redistribute the data file.

Writing the array declaration

This option allows to output the array declaration into a text format which can be copy-pasted to the macro as variable declaration

Dim buff(5) As Byte
buff(0) = 1: buff(1) = 2: buff(2) = 3
buff(3) = 4: buff(4) = 5: buff(5) = 6

WriteArrayDeclarationToFile buff, "D:\arr.txt", "arr", "Byte", 2

Just copy the content of the generated file and paste into the macro module to embed the data.

Array declared as text
Array declared as text

Sub WriteArrayDeclarationToFile(buffer As Variant, filePath As String, varName As String, typeName As String, Optional elemsPerRow As Integer = 10)

    Dim fileNo As Integer
    fileNo = FreeFile

    Open filePath For Output As #fileNo

    Print #fileNo, "Dim " & varName & "(" & UBound(buffer) & ") As " & typeName

    Dim i As Long

    For i = 0 To UBound(buffer) Step elemsPerRow

        Dim j As Long
        Dim last As Long

        If i + elemsPerRow > UBound(buffer) Then
            last = UBound(buffer)
        Else
            last = i + elemsPerRow - 1
        End If

        Dim line As String
        line = ""

        For j = i To last
            Dim val As String
            val = buffer(j)
            If LCase(typeName) = "string" Then
                val = """" & val & """"
            End If
            line = IIf(line <> "", line & ": ", "") + varName & "(" & j & ")=" & val
        Next

        Print #fileNo, line

    Next

    Close #fileNo

End Sub

This approach however has a limitation as the size of the file would be much bigger than the size of the array (e.g. array of size 500 KB would generate the file of about 10 MB). This results into the 'Out of memory' error in Visual Basic

Out of memory error in VBA
Out of memory error in VBA

Writing the base64 encoded array

As the workaround array can be embedded as Base64 string. Follow the following article for the code example of encoding the byte array into base64 string

Dim buff(100) As Byte
...
WriteByteArrayDeclarationToFileAsBase64 buff, "D:\arr1.txt"

This would result in the following file to be created:

Base64 encoded array
Base64 encoded array

Declare the string constant and paste the value from this file. Decode this string to get the byte array.

This solution can also run into the limitation of the maximum symbols per line.

Line length limitation in VBA
Line length limitation in VBA

To overcome this use the 3rd parameter of WriteByteArrayDeclarationToFileAsBase64 method which allows to set the maximum number of symbols and automatically split the line with line continuation symbol:

WriteByteArrayDeclarationToFileAsBase64 buff, "D:\arr1.txt", 100

The function provides the workaround for the limitation of maximum numbers of continuations which is equal to 24 ('Too many line continuations') and splits the data in different functions.

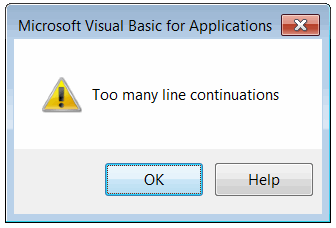

Too many line continuations error in VBA
Too many line continuations error in VBA

As the result the data is written to the file in the following format:

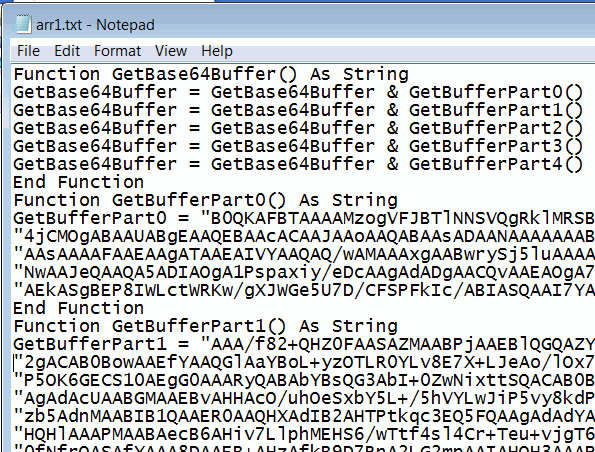

Base64 encoded string split by functions
Base64 encoded string split by functions

To use this, copy the content into the module and call the GetBase64Buffer function from the code which will return the base 64 encoded array which can be decoded.

Sub WriteByteArrayDeclarationToFileAsBase64(buffer As Variant, filePath As String, Optional lineMaxLength As Integer = -1)

    Const FUNC_NAME = "GetBufferPart"

    Dim fileNo As Integer
    fileNo = FreeFile

    Open filePath For Output As #fileNo

    Dim data As String
    data = ConvertToBase64String(buffer)
    data = Replace(data, vbLf, "")

    If lineMaxLength > 1 Then

        Const MAX_LINE_CONTINUATIONS As Integer = 24

        Dim curLineIndex As Integer
        Dim curCont As Integer
        curLineIndex = 0

        Dim i As Long

        Dim funcsCount As Integer
        funcsCount = Round((Len(data) - 1) / lineMaxLength / MAX_LINE_CONTINUATIONS) - 1

        Print #fileNo, "Function GetBase64Buffer() As String"

        For i = 0 To funcsCount
            Print #fileNo, "GetBase64Buffer = GetBase64Buffer & " & FUNC_NAME & i & "()"
        Next

        Print #fileNo, "End Function"

        Dim funcName As String

        For i = 1 To Len(data) Step lineMaxLength

            If curCont = MAX_LINE_CONTINUATIONS Then
                curCont = 0
                curLineIndex = curLineIndex + 1
            End If

            Dim length As Integer

            Dim isLast As Boolean
            isLast = False

            If i + lineMaxLength > Len(data) Then
                length = Len(data) - i + 1
                isLast = True
            Else
                length = lineMaxLength
            End If

            curCont = curCont + 1

            If curCont = 1 Then
                funcName = FUNC_NAME & curLineIndex
                Print #fileNo, "Function " & funcName & "() As String"
            End If

            isLast = isLast Or curCont >= MAX_LINE_CONTINUATIONS

            Dim lineConc As String
            lineConc = ""
            If Not isLast Then
                lineConc = " & _"
            End If

            Print #fileNo, IIf(curCont = 1, funcName & " = ", ""); """" & Mid(data, i, length) & """" & lineConc

            If isLast Then
                Print #fileNo, "End Function"
            End If

        Next

    Else
        Print #fileNo, data
    End If

    Close #fileNo

End Sub

Function ConvertToBase64String(vArr As Variant) As String

    Dim xmlDoc As Object
    Dim xmlNode As Object

    Set xmlDoc = CreateObject("MSXML2.DOMDocument")

    Set xmlNode = xmlDoc.createElement("b64")

    xmlNode.DataType = "bin.base64"
    xmlNode.nodeTypedValue = vArr

    ConvertToBase64String = xmlNode.Text

End Function
