VBA macro to scale the geometry of the imported features using SOLIDWORKS API

Edit ArticleEdit Article

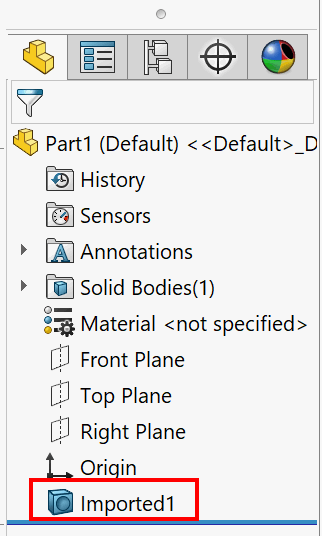

Imported geometry feature
Imported geometry feature

This VBA macro scales all bodies form the imported features in active SOLIDWORKS part file. THe imported features will be generated if file is loaded from neutral formats like STEP, IGES, Parasolid unless 3D Interconnect option is used.

Set the scale factor in the SCALE_FACTOR constant.

Const SCALE_FACTOR As Double = 2.5

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Dim errs As Long
    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swFeat As SldWorks.Feature

        Dim i As Integer
        i = -1

        Do
            i = i + 1
            Set swFeat = swModel.FeatureByPositionReverse(i)

            If swFeat.GetTypeName2() = "BaseBody" Then

                Dim swBody As SldWorks.Body2

                Set swBody = swFeat.GetFaces()(0).GetBody
                Set swBody = swBody.Copy

                ApplyScale swBody, SCALE_FACTOR

                swFeat.SetBody swBody

            End If

            If swFeat.GetTypeName2() = "OriginProfileFeature" Then
                Exit Do
            End If

        Loop While Not swFeat Is Nothing

    Else
        Err.Raise vbError, "", "Failed to load model: " & errs
    End If

End Sub

Sub ApplyScale(body As SldWorks.Body2, scaleFactor As Double)

    Dim dMatrix(15) As Double
    dMatrix(0) = 1: dMatrix(1) = 0: dMatrix(2) = 0: dMatrix(3) = 0
    dMatrix(4) = 1: dMatrix(5) = 0: dMatrix(6) = 0: dMatrix(7) = 0
    dMatrix(8) = 1: dMatrix(9) = 0: dMatrix(10) = 0: dMatrix(11) = 0
    dMatrix(12) = scaleFactor: dMatrix(13) = 0: dMatrix(14) = 0: dMatrix(15) = 0

    Dim swMathUtils As SldWorks.MathUtility
    Set swMathUtils = swApp.GetMathUtility

    Dim swMathTransform As SldWorks.MathTransform
    Set swMathTransform = swMathUtils.CreateTransform(dMatrix)

    body.ApplyTransform swMathTransform

End Sub
