SOLIDWORKS macro finds intersection points between surface and curve

Edit ArticleEdit Article

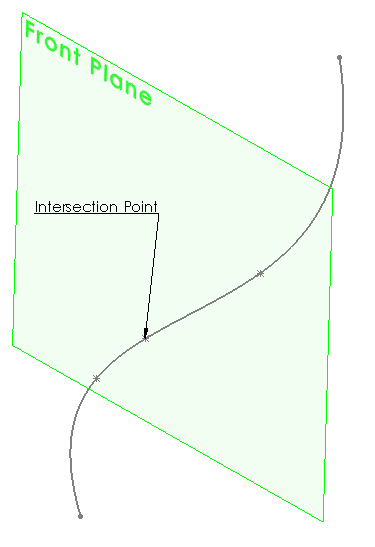

Intersection point between plane and sketch spline
Intersection point between plane and sketch spline

This example demonstrates how to find the intersection points between selected surface (plane or face) with curve (edge or sketch segment) using SOLIDWORKS API.

  • Open Part document
  • Select plane or any face as first selection object
  • Select sketch segment (line, spline or arc) as second selection object
  • Run the macro. As the result the 3D Sketch is created with points of intersection between selected objects

ISurface::IntersectCurve2 SOLIDWORKS API method is used to find the intersection points within the specified boundaries of curve and surface.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swModel.SelectionManager

        Dim swSurf As SldWorks.Surface
        Dim swCurve As SldWorks.curve

        Set swSurf = GetSurface(swSelMgr.GetSelectedObject6(1, -1))
        Set swCurve = GetCurve(swSelMgr.GetSelectedObject6(2, -1))

        If Not swSurf Is Nothing And Not swCurve Is Nothing Then

            Dim vStartPt As Variant
            Dim vEndPt As Variant

            GetCurveEndPoints swCurve, vStartPt, vEndPt

            Dim dBounds(5) As Double
            dBounds(0) = vStartPt(0): dBounds(1) = vStartPt(1): dBounds(2) = vStartPt(2)
            dBounds(3) = vEndPt(0): dBounds(4) = vEndPt(1): dBounds(5) = vEndPt(2)

            Dim vPoints As Variant
            Dim curveParams As Variant
            Dim uvParams As Variant
            swSurf.IntersectCurve2 swCurve, dBounds, vPoints, curveParams, uvParams

            DrawPoints swModel, vPoints

        Else
            MsgBox "Please select surface (plane or face) and curve (edge or sketch segment) to find intersection"
        End If

    Else
        MsgBox "Please opent the model"
    End If

End Sub

Function GetSurface(swObj As Object) As SldWorks.Surface

    Dim swSurf As SldWorks.Surface

    If TypeOf swObj Is SldWorks.Face2 Then

        Dim swFace As SldWorks.Face2
        Set swFace = swObj
        Set swSurf = swFace.GetSurface

    ElseIf TypeOf swObj Is SldWorks.Feature Then

        Dim swFeat As SldWorks.Feature
        Set swFeat = swObj

        If swFeat.GetTypeName2() = "RefPlane" Then
            Dim swRefPlane As SldWorks.refPlane
            Set swRefPlane = swFeat.GetSpecificFeature2()
            Set swSurf = CreateSurfaceFromRefPlane(swRefPlane)
        End If

    End If

    Set GetSurface = swSurf

End Function

Function CreateSurfaceFromRefPlane(refPlane As SldWorks.refPlane) As SldWorks.Surface

    Dim swModeler As SldWorks.Modeler
    Dim swMathUtils As SldWorks.MathUtility

    Set swModeler = swApp.GetModeler()

    Set swMathUtils = swApp.GetMathUtility

    Dim dRoot(2) As Double
    dRoot(0) = 0: dRoot(1) = 0: dRoot(2) = 0

    Dim dNorm(2) As Double
    dNorm(0) = 0: dNorm(1) = 0: dNorm(2) = 1

    Dim dRef(2) As Double
    dRef(0) = 1: dRef(1) = 0: dRef(2) = 0

    Dim swRootPt As SldWorks.MathPoint
    Dim swNormVec As SldWorks.MathVector
    Dim swRefVec As SldWorks.MathVector

    Set swRootPt = swMathUtils.CreatePoint(dRoot)
    Set swNormVec = swMathUtils.CreateVector(dNorm)
    Set swRefVec = swMathUtils.CreateVector(dRef)

    Dim swXForm As SldWorks.MathTransform
    Set swXForm = refPlane.Transform

    Set swRootPt = swRootPt.MultiplyTransform(swXForm)
    Set swNormVec = swNormVec.MultiplyTransform(swXForm)
    Set swRefVec = swRefVec.MultiplyTransform(swXForm)

    Set CreateSurfaceFromRefPlane = swModeler.CreatePlanarSurface2(swRootPt.ArrayData, swNormVec.ArrayData, swRefVec.ArrayData)

End Function

Function GetCurve(swObj As Object) As SldWorks.curve

    Dim swCurve As SldWorks.curve

    If TypeOf swObj Is SldWorks.Edge Then

        Dim swEdge As SldWorks.Edge
        Set swEdge = swObj
        Set swCurve = swEdge.GetCurve

    ElseIf TypeOf swObj Is SldWorks.SketchSegment Then

        Dim swSkSeg As SldWorks.SketchSegment
        Set swSkSeg = swObj

        Set swCurve = GetTrimmedCurveFromSketchSegment(swSkSeg)

    End If

    Set GetCurve = swCurve

End Function

Function GetTrimmedCurveFromSketchSegment(skSeg As SldWorks.SketchSegment) As SldWorks.curve

    Dim swCurve As SldWorks.curve
    Set swCurve = skSeg.GetCurve

    Dim swStartPt As SldWorks.SketchPoint
    Dim swEndPt As SldWorks.SketchPoint

    If TypeOf skSeg Is SldWorks.SketchLine Then

        Dim swSkLine As SldWorks.SketchLine
        Set swSkLine = skSeg
        Set swStartPt = swSkLine.GetStartPoint2()
        Set swEndPt = swSkLine.GetEndPoint2()

    ElseIf TypeOf skSeg Is SldWorks.SketchSpline Then

        Dim swSkSpline As SldWorks.SketchSpline
        Set swSkSpline = skSeg
        Dim vSplinePts As Variant
        vSplinePts = swSkSpline.GetPoints2()
        Set swStartPt = vSplinePts(0)
        Set swEndPt = vSplinePts(UBound(vSplinePts))

    ElseIf TypeOf skSeg Is SldWorks.SketchArc Then

        Dim swSkArc As SldWorks.SketchArc
        Set swSkArc = skSeg
        Set swStartPt = swSkArc.GetStartPoint2()
        Set swEndPt = swSkArc.GetStartPoint2()

    End If

    Set swCurve = swCurve.CreateTrimmedCurve2(swStartPt.X, swStartPt.Y, swStartPt.Z, swEndPt.X, swEndPt.Y, swEndPt.Z)

    Dim swXForm As SldWorks.MathTransform
    Set swXForm = skSeg.GetSketch().ModelToSketchTransform.Inverse

    swCurve.ApplyTransform swXForm

    Set GetTrimmedCurveFromSketchSegment = swCurve

End Function

Function GetCurveEndPoints(curve As SldWorks.curve, ByRef startPt As Variant, ByRef endPt As Variant)

    Dim startParam As Double
    Dim endParam As Double

    curve.GetEndParams startParam, endParam, False, False

    Dim dStartPt(2) As Double
    Dim dEndPt(2) As Double

    Dim evalRes As Variant
    evalRes = curve.Evaluate2(startParam, 1)

    dStartPt(0) = evalRes(0): dStartPt(1) = evalRes(1): dStartPt(2) = evalRes(2)

    evalRes = curve.Evaluate2(endParam, 1)

    dEndPt(0) = evalRes(0): dEndPt(1) = evalRes(1): dEndPt(2) = evalRes(2)

    startPt = dStartPt
    endPt = dEndPt

End Function

Function DrawPoints(model As SldWorks.ModelDoc2, points As Variant)

    model.ClearSelection2 True

    model.SketchManager.Insert3DSketch True
    model.SketchManager.AddToDB = True

    Dim i As Integer

    For i = 0 To UBound(points) Step 3
        model.SketchManager.CreatePoint points(i), points(i + 1), points(i + 2)
    Next

    model.SketchManager.AddToDB = False
    model.SketchManager.Insert3DSketch True

End Function
