Find intersection points and topology entities by ray intersection SOLIDWORKS model

This VBA macro example demonstrates how to find the intersection points and the corresponding topology entities between all solid bodies of the active SOLIDWORKS part document and rays created from the sketch points of the selected sketch.

How To Run The Macro

Open or create a part document with visible solid bodies.
Create 2D sketch with sketch points. Sketch points will be used as the starting points of the ray. And the sketch normal will be used as the direction for the rays
Select the sketch above
Run the macro. Macro will find all the intersections and pause on every found result

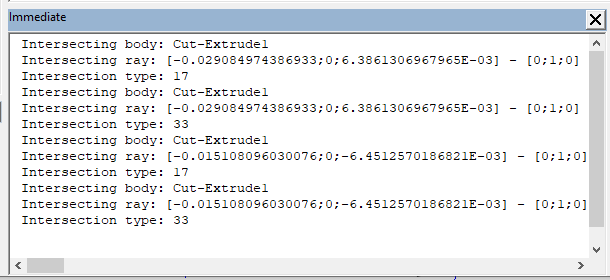

- Macro will output the information about each ray into the VBA Immediate Window. Information includes the name of the body, ray information (starting point and direction), and intersection type as defined in swRayPtsResults_e
Ray intersection information
- Macro will select the corresponding entity (face or edge) which ray has hit. The selection point will indicate the point where the ray hit the entity
- Continue macro with F5 or Run button in VBA editor to iterate all results
Ray intersection entities

Dim swApp As SldWorks.SldWorks
Const HIT_RADIUS As Double = 0.00000001

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2
    Dim swPart As SldWorks.PartDoc

    Set swModel = swApp.ActiveDoc
    Set swPart = swModel

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = swModel.SelectionManager

    Dim swSketch As SldWorks.sketch

    If swSelMgr.GetSelectedObjectType3(1, -1) = swSelectType_e.swSelSKETCHES Then
        Dim swFeat As SldWorks.Feature
        Set swFeat = swSelMgr.GetSelectedObject6(1, -1)
        Set swSketch = swFeat.GetSpecificFeature2
    Else
        Err.Raise vbError, "", "Sketch with sketch point rays is not selected"
    End If

    Dim vRayStartPts As Variant
    Dim vRayVecs As Variant

    GetRaysFromSketchPoints swSketch, vRayStartPts, vRayVecs

    Dim vBodies As Variant
    vBodies = swPart.GetBodies2(swBodyType_e.swSolidBody, True)

    Dim interCount As Integer
    interCount = swModel.Extension.RayIntersections(vBodies, vRayStartPts, vRayVecs, swRayPtsOpts_e.swRayPtsOptsENTRY_EXIT + swRayPtsOpts_e.swRayPtsOptsTOPOLS, HIT_RADIUS, 0, True)

    If interCount > 0 Then

        Dim vInterPoints As Variant
        vInterPoints = swModel.GetRayIntersectionsPoints()

        Dim vInterTopol As Variant
        vInterTopol = swModel.GetRayIntersectionsTopology

        Dim i As Integer

        For i = 0 To interCount - 1

            Dim bodyIndex As Integer
            Dim rayIndex As Integer
            Dim interType As Integer
            Dim dHitPt(2) As Double

            bodyIndex = CInt(vInterPoints(i * 9))
            rayIndex = CInt(vInterPoints(i * 9 + 1))
            interType = CInt(vInterPoints(i * 9 + 2))

            dHitPt(0) = CDbl(vInterPoints(i * 9 + 3))
            dHitPt(1) = CDbl(vInterPoints(i * 9 + 4))
            dHitPt(2) = CDbl(vInterPoints(i * 9 + 5))

            Dim swEnt As SldWorks.Entity
            Set swEnt = vInterTopol(i)

            Debug.Print "Intersecting body: " & vBodies(bodyIndex).Name
            Debug.Print "Intersecting ray: [" & vRayStartPts(rayIndex * 3) & ";" & vRayStartPts(rayIndex * 3 + 1) & ";" & vRayStartPts(rayIndex * 3 + 2) & "] - [" & vRayVecs(rayIndex * 3) & ";" & vRayVecs(rayIndex * 3 + 1) & ";" & vRayVecs(rayIndex * 3 + 2) & "]"
            Debug.Print "Intersection type: " & interType

            Dim swSelData As SldWorks.SelectData
            Set swSelData = swSelMgr.CreateSelectData

            swSelData.X = dHitPt(0)
            swSelData.Y = dHitPt(1)
            swSelData.Z = dHitPt(2)

            swEnt.Select4 False, swSelData

            Stop

        Next

    Else
        Err.Raise vbError, "", "No intersections found"
    End If

End Sub

Sub GetRaysFromSketchPoints(sketch As SldWorks.sketch, rayStartPts As Variant, rayVecs As Variant)

    If False = sketch.Is3D() Then

        Dim dRayStartPts() As Double
        Dim dRayVecs() As Double

        Dim vSkPoints As Variant
        vSkPoints = sketch.GetSketchPoints2

        If Not IsEmpty(vSkPoints) Then

            Dim swTransform As SldWorks.MathTransform
            Set swTransform = sketch.ModelToSketchTransform.Inverse

            Dim swMathUtils As SldWorks.MathUtility
            Set swMathUtils = swApp.GetMathUtility

            Dim dVec(2) As Double
            dVec(0) = 0: dVec(1) = 0: dVec(2) = 1

            Dim swMathVec As SldWorks.MathVector
            Set swMathVec = swMathUtils.CreateVector(dVec)
            Set swMathVec = swMathVec.MultiplyTransform(swTransform)

            ReDim dRayStartPts((UBound(vSkPoints) + 1) * 3 - 1)
            ReDim dRayVecs((UBound(vSkPoints) + 1) * 3 - 1)

            Dim i As Integer

            For i = 0 To UBound(vSkPoints)

                Dim swMathPt As SldWorks.MathPoint
                Dim dPt(2) As Double

                Dim swSkPt As SldWorks.SketchPoint
                Set swSkPt = vSkPoints(i)
                dPt(0) = swSkPt.X: dPt(1) = swSkPt.Y: dPt(2) = 0

                Set swMathPt = swMathUtils.CreatePoint(dPt)
                Set swMathPt = swMathPt.MultiplyTransform(swTransform)

                Dim vData As Variant
                vData = swMathPt.ArrayData

                dRayStartPts(i * 3) = vData(0)
                dRayStartPts(i * 3 + 1) = vData(1)
                dRayStartPts(i * 3 + 2) = vData(2)

                vData = swMathVec.ArrayData

                dRayVecs(i * 3) = vData(0)
                dRayVecs(i * 3 + 1) = vData(1)
                dRayVecs(i * 3 + 2) = vData(2)

            Next

            rayStartPts = dRayStartPts
            rayVecs = dRayVecs

        Else
            Err.Raise vbError, "", "No sketch points in the specified sketch"
        End If

    Else
        Err.Raise vbError, "", "Only 2D sketch can be used for rays"
    End If

End Sub
