Create elliptical swept temp body using SOLIDWORKS modeler API

Circular profile swept along elliptical path

This example demonstrates how to sweep the circular profile along elliptical path to create a temp body using SOLIDWORKS API.

The IModeler::CreateSweptBody SOLIDWORKS API method requires profile and path to be preselected which means curves cannot be used for sweep operation.

However macro demonstrates how to create edges from the curves in the temp wire bodies.

Using the Selecting Objects For API Only technique allows to create sweep body without displaying any wire bodies and without any visible selection in the graphics area. All the user selections will be also preserved.

Open part document
Optionally select any object (this will not affect the sweep operation).

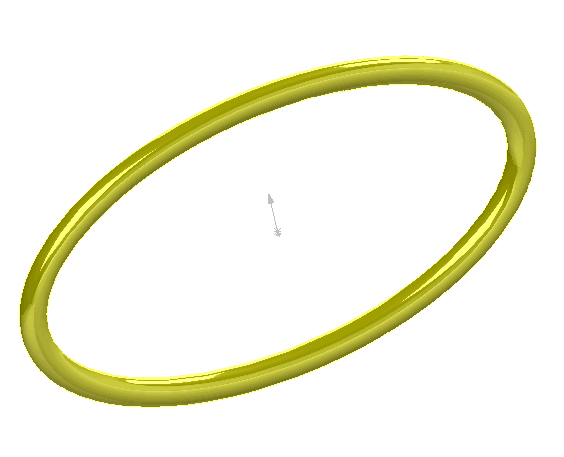

Run the macro. Macro displays the temp body and all the user selected objects are preserved.
Macro stops the execution
Continue the macro to hide the preview

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSweptBody As SldWorks.Body2

        Dim swPath As SldWorks.Curve

        Set swPath = GetPath()

        Dim vPtOnPath As Variant

        vPtOnPath = swPath.GetClosestPointOn(0, 0, 0)

        Dim dCenter(2) As Double
        dCenter(0) = vPtOnPath(0): dCenter(1) = vPtOnPath(1): dCenter(2) = vPtOnPath(2)

        Dim swProfile As SldWorks.Curve
        Set swProfile = GetProfile(dCenter)

        Set swSweptBody = CreateSweptBody(swModel, swProfile, swPath)

        swSweptBody.Display3 swModel, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone

        Stop
        Set swSweptBody = Nothing

    Else
        MsgBox "Please open model"
    End If

End Sub

Function CreateSweptBody(model As SldWorks.ModelDoc2, profile As SldWorks.Curve, path As SldWorks.Curve) As SldWorks.Body2

    Dim swModeler As SldWorks.modeler
    Set swModeler = swApp.GetModeler

    Dim swProfileBody As SldWorks.Body2
    Set swProfileBody = profile.CreateWireBody

    Dim swPathBody As SldWorks.Body2
    Set swPathBody = path.CreateWireBody()

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = model.SelectionManager

    swSelMgr.SuspendSelectionList

    AddToCurrentSelectionSet swSelMgr, swProfileBody.GetEdges(), 1
    AddToCurrentSelectionSet swSelMgr, swPathBody.GetEdges(), 4

    Dim swSweptBody As SldWorks.Body2
    Set swSweptBody = swModeler.CreateSweptBody(model, True, False, swTwistControlType_e.swTwistControlFollowPath, True, False, swTangencyType_e.swTangencyNone, swTangencyType_e.swTangencyNone, False, 0, 0, swThinWallType_e.swThinWallMidPlane, 0, 0, False)

    Set CreateSweptBody = swSweptBody

    Set swProfileBody = Nothing
    Set swPathBody = Nothing

    swSelMgr.ResumeSelectionList

End Function

Sub AddToCurrentSelectionSet(selMgr As SldWorks.SelectionMgr, vObjects As Variant, selMark As Integer)

    Dim swSelData As SldWorks.SelectData

    Set swSelData = selMgr.CreateSelectData

    swSelData.Mark = selMark

    Dim i As Integer

    For i = 0 To UBound(vObjects)
        Dim obj As Object
        Set obj = vObjects(i)
        selMgr.AddSelectionListObject obj, swSelData
    Next

End Sub

Function GetProfile(center As Variant) As SldWorks.Curve

    Dim swModeler As SldWorks.modeler
    Set swModeler = swApp.GetModeler

    Dim dAxis(2) As Double
    dAxis(0) = 0: dAxis(1) = 0: dAxis(2) = 1

    Const radius As Double = 0.01
    Dim dStartPt(2) As Double
    dStartPt(0) = radius + center(0): dStartPt(1) = center(1): dStartPt(2) = center(2)

    Dim swProfileCurve As SldWorks.Curve
    Set swProfileCurve = swModeler.CreateArc(center, dAxis, radius, dStartPt, dStartPt)

    Set GetProfile = swProfileCurve

End Function

Function GetPath() As SldWorks.Curve

    Dim swModeler As SldWorks.modeler
    Set swModeler = swApp.GetModeler

    Const majorRadius As Double = 0.2
    Const minorRadius As Double = 0.1

    Dim dCenter(2) As Double
    dCenter(0) = 0: dCenter(1) = 0: dCenter(2) = 0

    Dim dMajorAxis(2) As Double
    dMajorAxis(0) = 0.5: dMajorAxis(1) = 0: dMajorAxis(2) = 1

    Dim dMinorAxis(2) As Double
    dMinorAxis(0) = 0.25: dMinorAxis(1) = 1: dMinorAxis(2) = 0

    Dim swPath As SldWorks.Curve

    Set swPath = swModeler.CreateEllipse(dCenter, majorRadius, minorRadius, dMajorAxis, dMinorAxis)

    Set GetPath = swPath

End Function
