Macro create precise part bounding box using SOLIDWORKS API

Precise bounding box in the part document

As per Remarks section of IPartDoc::GetPartBox method (or other BoundingBox APIs) in SOLIDWORKS API Help Documentation

The values returned are approximate and should not be used for comparison or calculation purposes. Furthermore, the bounding box may vary after rebuilding the model

To calculate the precise bounding box it is required to find the extreme points of each body in XYZ directions via IBody2::GetExtremePoint

The following macros will calculate the bounding box, width, height and length of the active part document using both approaches of SOLIDWORKS API.

As the result 3D Sketch with bounding box is created.

Precision

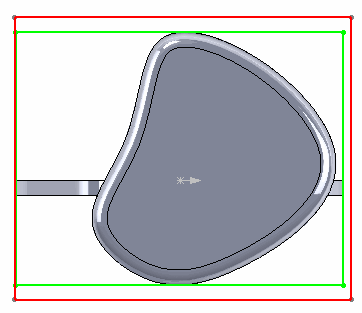

Bounding boxes calculated approximately might be more than 10% inaccurate. For the following example part the difference between the bounding boxes volumes equal to 14%. The following images show the differences (green box is a precise calculation and red box is an approximate calculation):

The precise bounding box calculated by extreme points is exactly equal to the bounding box created by bounding box feature added in SOLIDWORKS 2018

Performance

Extraction of approximate box is more than 300 times quicker. For a single body part approximate calculation of bounding box took 0.016ms, while it took 5.57 ms for precise calculation of the same part. For multi-body part of 63 bodies it took 0.018ms for approximate calculations and 16.68 ms for precise calculations.

As a summary on avarage it would be possible to calculate more than 60000 approximate bounding boxes per second and only about 50 precise bounding boxes per second (more than 1000 times difference)

Calculating precise bounding box via extreme points

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks
    Dim swPart As SldWorks.PartDoc

    Set swPart = swApp.ActiveDoc

    If Not swPart Is Nothing Then

        Dim vBBox As Variant

        vBBox = GetPreciseBoundingBox(swPart)

        DrawBox swPart, CDbl(vBBox(0)), CDbl(vBBox(1)), CDbl(vBBox(2)), CDbl(vBBox(3)), CDbl(vBBox(4)), CDbl(vBBox(5))

        Debug.Print "Width: " & CDbl(vBBox(3)) - CDbl(vBBox(0))
        Debug.Print "Length: " & CDbl(vBBox(5)) - CDbl(vBBox(2))
        Debug.Print "Height: " & CDbl(vBBox(4)) - CDbl(vBBox(1))

    Else

        MsgBox "Please open part"

    End If

End Sub

Function GetPreciseBoundingBox(part As SldWorks.PartDoc) As Variant

    Dim dBox(5) As Double

    Dim vBodies As Variant
    vBodies = part.GetBodies2(swBodyType_e.swSolidBody, True)

    Dim minX As Double
    Dim minY As Double
    Dim minZ As Double
    Dim maxX As Double
    Dim maxY As Double
    Dim maxZ As Double

    If Not IsEmpty(vBodies) Then

        Dim i As Integer

        For i = 0 To UBound(vBodies)

            Dim swBody As SldWorks.Body2

            Set swBody = vBodies(i)

            Dim x As Double
            Dim y As Double
            Dim z As Double

            swBody.GetExtremePoint 1, 0, 0, x, y, z

            If i = 0 Or x > maxX Then
                maxX = x
            End If

            swBody.GetExtremePoint -1, 0, 0, x, y, z

            If i = 0 Or x < minX Then
                minX = x
            End If

            swBody.GetExtremePoint 0, 1, 0, x, y, z

            If i = 0 Or y > maxY Then
                maxY = y
            End If

            swBody.GetExtremePoint 0, -1, 0, x, y, z

            If i = 0 Or y < minY Then
                minY = y
            End If

            swBody.GetExtremePoint 0, 0, 1, x, y, z

            If i = 0 Or z > maxZ Then
                maxZ = z
            End If

            swBody.GetExtremePoint 0, 0, -1, x, y, z

            If i = 0 Or z < minZ Then
                minZ = z
            End If

        Next

    End If

    dBox(0) = minX: dBox(1) = minY: dBox(2) = minZ
    dBox(3) = maxX: dBox(4) = maxY: dBox(5) = maxZ

    GetPreciseBoundingBox = dBox

End Function

Sub DrawBox(model As SldWorks.ModelDoc2, minX As Double, minY As Double, minZ As Double, maxX As Double, maxY As Double, maxZ As Double)

    model.ClearSelection2 True

    model.SketchManager.Insert3DSketch True
    model.SketchManager.AddToDB = True

    model.SketchManager.CreateLine maxX, minY, minZ, maxX, minY, maxZ
    model.SketchManager.CreateLine maxX, minY, maxZ, minX, minY, maxZ
    model.SketchManager.CreateLine minX, minY, maxZ, minX, minY, minZ
    model.SketchManager.CreateLine minX, minY, minZ, maxX, minY, minZ

    model.SketchManager.CreateLine maxX, maxY, minZ, maxX, maxY, maxZ
    model.SketchManager.CreateLine maxX, maxY, maxZ, minX, maxY, maxZ
    model.SketchManager.CreateLine minX, maxY, maxZ, minX, maxY, minZ
    model.SketchManager.CreateLine minX, maxY, minZ, maxX, maxY, minZ

    model.SketchManager.CreateLine minX, minY, minZ, minX, maxY, minZ
    model.SketchManager.CreateLine minX, minY, maxZ, minX, maxY, maxZ

    model.SketchManager.CreateLine maxX, minY, minZ, maxX, maxY, minZ
    model.SketchManager.CreateLine maxX, minY, maxZ, maxX, maxY, maxZ

    model.SketchManager.AddToDB = False
    model.SketchManager.Insert3DSketch True

End Sub

Calculating approximate bounding box

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swPart As SldWorks.PartDoc

    Set swPart = swApp.ActiveDoc

    If Not swPart Is Nothing Then

        Dim vBBox As Variant

        vBBox = swPart.GetPartBox(True)

        DrawBox swPart, CDbl(vBBox(0)), CDbl(vBBox(1)), CDbl(vBBox(2)), CDbl(vBBox(3)), CDbl(vBBox(4)), CDbl(vBBox(5))

        Debug.Print "Width: " & vBBox(3) - vBBox(0)
        Debug.Print "Length: " & vBBox(5) - vBBox(2)
        Debug.Print "Height: " & vBBox(4) - vBBox(1)

    Else

        MsgBox "Please open part"

    End If

End Sub

Sub DrawBox(model As SldWorks.ModelDoc2, minX As Double, minY As Double, minZ As Double, maxX As Double, maxY As Double, maxZ As Double)

    model.ClearSelection2 True

    model.SketchManager.Insert3DSketch True
    model.SketchManager.AddToDB = True

    model.SketchManager.CreateLine maxX, minY, minZ, maxX, minY, maxZ
    model.SketchManager.CreateLine maxX, minY, maxZ, minX, minY, maxZ
    model.SketchManager.CreateLine minX, minY, maxZ, minX, minY, minZ
    model.SketchManager.CreateLine minX, minY, minZ, maxX, minY, minZ

    model.SketchManager.CreateLine maxX, maxY, minZ, maxX, maxY, maxZ
    model.SketchManager.CreateLine maxX, maxY, maxZ, minX, maxY, maxZ
    model.SketchManager.CreateLine minX, maxY, maxZ, minX, maxY, minZ
    model.SketchManager.CreateLine minX, maxY, minZ, maxX, maxY, minZ

    model.SketchManager.CreateLine minX, minY, minZ, minX, maxY, minZ
    model.SketchManager.CreateLine minX, minY, maxZ, minX, maxY, maxZ

    model.SketchManager.CreateLine maxX, minY, minZ, maxX, maxY, minZ
    model.SketchManager.CreateLine maxX, minY, maxZ, maxX, maxY, maxZ

    model.SketchManager.AddToDB = False
    model.SketchManager.Insert3DSketch True

End Sub
