Get type of cylindrical face using SOLIDWORKS API

Edit ArticleEdit Article

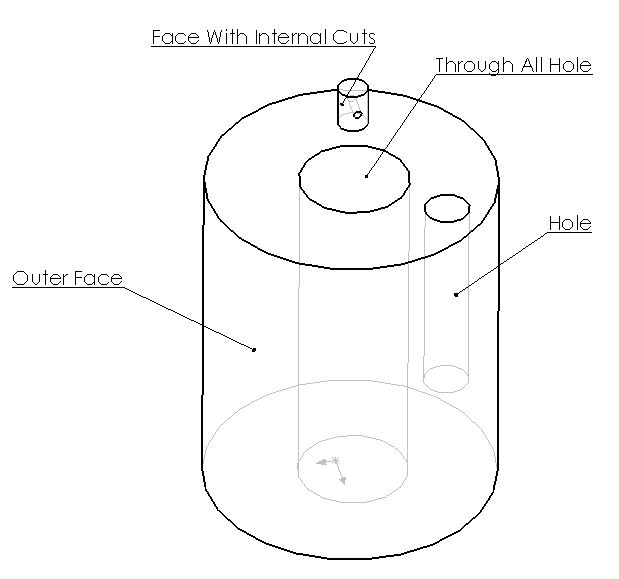

Types of cylindrical faces
Types of cylindrical faces

This macro identifies the type of the selected simple cylindrical face (through all hole, blind hole or external hole) based on the loops type using SOLIDWORKS API.

Macro will only work with cylindrical faces whose adjacent faces are planar faces and upper and lower boundaries of the cylinder are closed circular edges.

Algorithm

Macro traverses the loops of coedges of upper and lower boundary edges. If there is at least one internal loop that means that selected face is a hole, otherwise it is an external boss. If both of the boundary loops are internal that means that the hole is through all, if one boundary loop is external but other is internal that means that the selected face is a blind hole (i.e. not a through all hole).

Enum FaceType_e
    Outer
    BlindHole
    ThroughHole
    ContainsCutouts
End Enum

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr

        Set swSelMgr = swModel.SelectionManager

        Set swSelMgr = swModel.SelectionManager

        Dim swFace As SldWorks.Face2
        Set swFace = swSelMgr.GetSelectedObject6(1, -1)

        If Not swFace Is Nothing Then

            Dim swSurf As SldWorks.Surface
            Set swSurf = swFace.GetSurface

            If swSurf.IsCylinder() Then
                Dim faceType As FaceType_e
                faceType = GetCylindricalFaceType(swFace)

                Select Case faceType
                    Case FaceType_e.BlindHole
                        MsgBox "Selected face is a blind hole"
                    Case FaceType_e.Outer
                        MsgBox "Selected face is an outer face"
                    Case FaceType_e.ThroughHole
                        MsgBox "Selected face is through all hole"
                    Case FaceType_e.ContainsCutouts
                        MsgBox "Selected face contains cutouts"
                End Select

            Else
                MsgBox "Selected face is not cylindrical"
            End If

        Else
            MsgBox "Please select face"
        End If

    Else
        MsgBox "Please open the model"
    End If

End Sub

Function GetCylindricalFaceType(face As SldWorks.Face2) As FaceType_e

    Dim vEdges As Variant

    vEdges = face.GetEdges

    If UBound(vEdges) + 1 > 2 Then
        GetCylindricalFaceType = FaceType_e.ContainsCutouts
    ElseIf UBound(vEdges) + 1 = 2 Then

        Dim innerCount As Integer

        For i = 0 To UBound(vEdges)

            Dim swEdge As SldWorks.edge
            Set swEdge = vEdges(i)

            If HasInnerLoop(swEdge) Then
                innerCount = innerCount + 1
            End If

        Next

        If innerCount = 0 Then
            GetCylindricalFaceType = FaceType_e.Outer
        ElseIf innerCount = 1 Then
            GetCylindricalFaceType = FaceType_e.BlindHole
        ElseIf innerCount = 2 Then
            GetCylindricalFaceType = FaceType_e.ThroughHole
        End If
    End If

End Function

Function HasInnerLoop(edge As SldWorks.edge) As Boolean

    Dim vCoEdges As Variant
    vCoEdges = edge.GetCoEdges

    HasInnerLoop = False

    Dim i As Integer

    For i = 0 To UBound(vCoEdges)

        Dim swCoEdge As SldWorks.CoEdge
        Set swCoEdge = vCoEdges(i)

        Dim swLoop As SldWorks.Loop2
        Set swLoop = swCoEdge.GetLoop()

        If False = swLoop.IsOuter() Then
            HasInnerLoop = True
        End If
    Next

End Function
