SOLIDWORKS file versions report
SOLIDWORKS file versions report

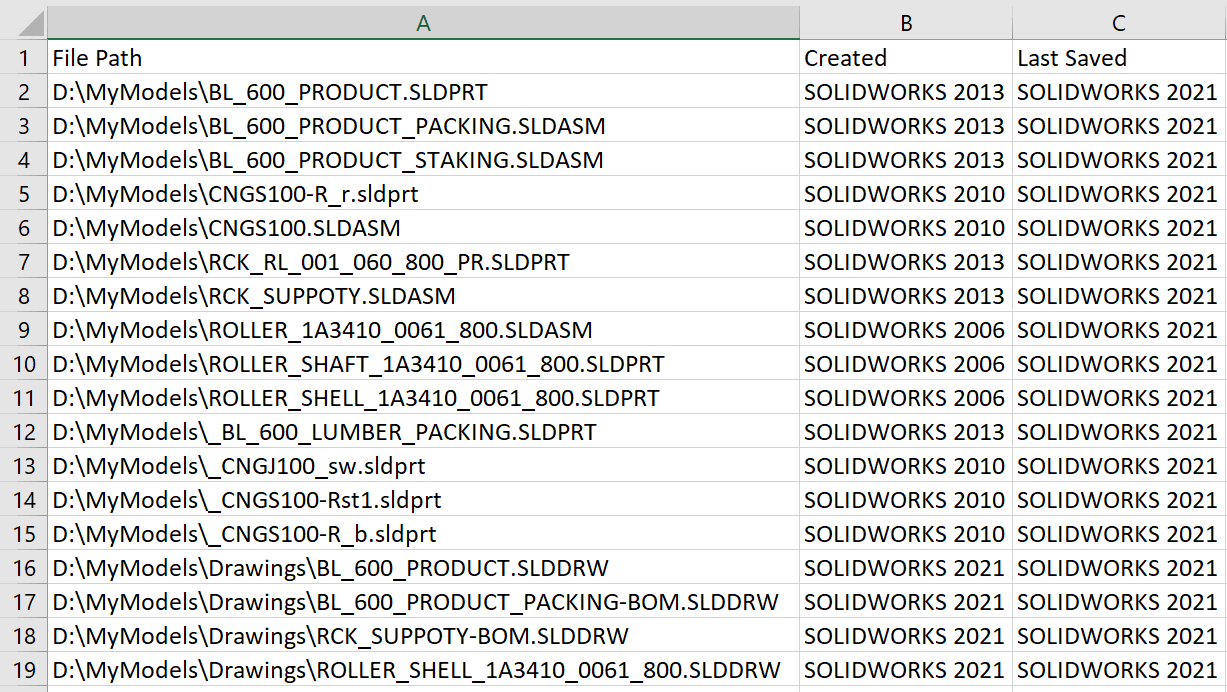

This VBA macro generates a CSV report (can be opened in Excel) of created and last saved version of SOLIDWORKS file in the specified folder.

This macro will not be opening each model individually which significantly reduces the processing time

Macro input and output parameter can be configured by changing the constants below

Const INPUT_FOLDER_PATH As String = "D:\MyModels" 'full path to the input folder with SOLIDWORKS files
Const OUT_FILE_PATH As String = "D:\sw-file-versions.csv" 'full path to the output CSV file of the report
Const FILES_FILTER As String = "*.sld*" 'Filter for files with the support of wildcards
Const INCLUDE_SUB_FOLDERS As Boolean = True 'True to process sub-folders, False to only process top level files

Const INPUT_FOLDER_PATH As String = "D:\MyModels"
Const OUT_FILE_PATH As String = "D:\sw-file-versions.csv"
Const FILES_FILTER As String = "*.sld*"
Const INCLUDE_SUB_FOLDERS As Boolean = True

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim vFilePaths As Variant
    vFilePaths = GetFiles(INPUT_FOLDER_PATH, INCLUDE_SUB_FOLDERS, FILES_FILTER)

    Dim i As Integer

    Dim fileNo As Integer
    fileNo = FreeFile

    Open OUT_FILE_PATH For Output As #fileNo

    Print #fileNo, "File Path,Created,Last Saved"

    For i = 0 To UBound(vFilePaths)

        Dim filePath As String
        filePath = vFilePaths(i)
        Dim vVers As Variant
        vVers = swApp.VersionHistory(filePath)

        Dim swCreatedVers As String
        Dim swLastSavedVers As String

        If Not IsEmpty(vVers) Then
            swCreatedVers = ConvertFileVersionToSwMajorVersion(ExtractSwRevisonFromHistoryRecord(CStr(vVers(0))))
            swLastSavedVers = ConvertFileVersionToSwMajorVersion(ExtractSwRevisonFromHistoryRecord(CStr(vVers(UBound(vVers)))))
        Else
            swCreatedVers = "???"
            swLastSavedVers = "???"
        End If

        Print #fileNo, filePath & "," & swCreatedVers & "," & swLastSavedVers

    Next

    Close #fileNo

End Sub

Function GetFiles(path As String, includeSubFolders As Boolean, Optional filter As String) As Variant

    Dim paths() As String
    Dim isInit As Boolean

    isInit = False

    Dim fso As Object
    Set fso = CreateObject("Scripting.FileSystemObject")

    Dim folder As Object
    Set folder = fso.GetFolder(path)

    CollectFilesFromFolder folder, includeSubFolders, filter, paths, isInit

    If isInit Then
        GetFiles = paths
    Else
        GetFiles = Empty
    End If

End Function

Sub CollectFilesFromFolder(folder As Object, includeSubFolders As Boolean, filter As String, ByRef paths() As String, ByRef isInit As Boolean)

    For Each file In folder.files

        If LCase(file.path) Like LCase(filter) Then
            If Not isInit Then
                ReDim paths(0)
                isInit = True
            Else
                ReDim Preserve paths(UBound(paths) + 1)
            End If
            paths(UBound(paths)) = file.path
        End If
    Next

    If includeSubFolders Then
        Dim subFolder As Object
        For Each subFolder In folder.SubFolders
            CollectFilesFromFolder subFolder, includeSubFolders, filter, paths, isInit
        Next
    End If

End Sub

Function ExtractSwRevisonFromHistoryRecord(fileVers As String) As String

    ExtractSwRevisonFromHistoryRecord = Left(fileVers, InStr(fileVers, "[") - 1)

End Function

Function ConvertFileVersionToSwMajorVersion(versNumber As Integer) As String

    Dim swVersMajor As String

    If versNumber >= 5000 Then
        swVersMajor = 2012 + (versNumber - 5000) / 1000
    Else
        Select Case versNumber
            Case 44
                swVersMajor = 95
            Case 243
                swVersMajor = 96
            Case 483
                swVersMajor = 97
            Case 629
                swVersMajor = "97Plus"
            Case 822
                swVersMajor = 98
            Case 1008
                swVersMajor = "98Plus"
            Case 1137
                swVersMajor = 99
            Case 1500
                swVersMajor = 2000
            Case 1750
                swVersMajor = 2001
            Case 1950
                swVersMajor = "2001Plus"
            Case 2200
                swVersMajor = 2003
            Case 2500
                swVersMajor = 2004
            Case 2800
                swVersMajor = 2005
            Case 3100
                swVersMajor = 2006
            Case 3400
                swVersMajor = 2007
            Case 3800
                swVersMajor = 2008
            Case 4100
                swVersMajor = 2009
            Case 4400
                swVersMajor = 2010
            Case 4700
                swVersMajor = 2011
        End Select
    End If

    ConvertFileVersionToSwMajorVersion = "SOLIDWORKS " & swVersMajor

End Function
