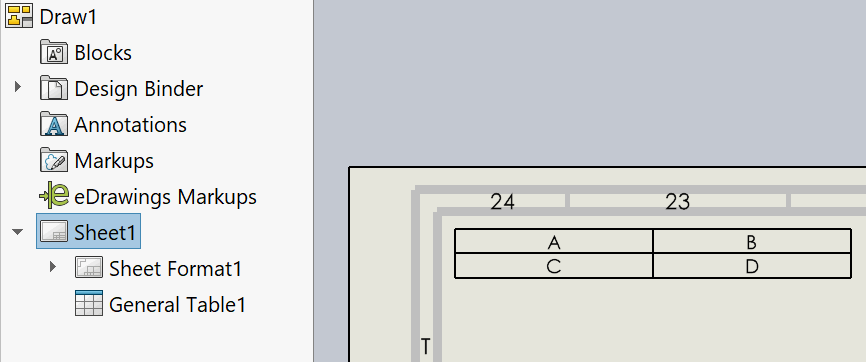

Find and read the table in the SOLIDWORKS drawing by the value of the cell

This VBA macro finds the table by the specified value pattern in the specified cell.

The data of the table is read into the string variable tableData and output into the VBA Immediate Window

Cells are separated by the value of the DELIMETER constant.

It is possible to use the matching pattern to match the value of the cell (e.g. *ABC* will match text containing ABC)

Text comparison is case insensitive

Indices of the row and column to search are 0-based (e.g. first cell in the first column will have an index 0, 0)

Provide the value of the search pattern and the target cell position in the call to FindTableByContent function

Set swTableAnnotation = FindTableByContent(swDraw, "*ABC*", 0, 0)

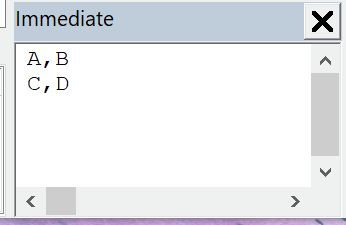

Table data output in the Immediate Window

Option Compare Text

Const DELIMETER As String = ","

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swDraw As SldWorks.DrawingDoc

    Set swDraw = swApp.ActiveDoc

    If Not swDraw Is Nothing Then

        Dim tableData As String

        Dim swTableAnnotation As SldWorks.TableAnnotation
        Set swTableAnnotation = FindTableByContent(swDraw, "a", 0, 0)

        Dim i As Integer
        Dim j As Integer

        For i = 0 To swTableAnnotation.RowCount - 1

            If i > 0 Then
                tableData = tableData & vbLf
            End If

            For j = 0 To swTableAnnotation.ColumnCount - 1
                If j > 0 Then
                    tableData = tableData & DELIMETER
                End If
                tableData = tableData & swTableAnnotation.Text(i, j)
            Next

        Next

        Debug.Print tableData

    Else
        Err.Raise "Open drawing"
    End If

End Sub

Function FindTableByContent(draw As SldWorks.DrawingDoc, searchCellVal As String, cellRow As Integer, cellColumn As Integer) As SldWorks.TableAnnotation

    Dim vSheets As Variant

    vSheets = draw.GetViews()

    Dim i As Integer

    For i = 0 To UBound(vSheets)

        Dim vViews As Variant
        vViews = vSheets(i)

        Dim swSheetView As SldWorks.View
        Set swSheetView = vViews(0)

        Dim vTableAnns As Variant
        vTableAnns = swSheetView.GetTableAnnotations

        If Not IsEmpty(vTableAnns) Then

            Dim j As Integer

            For j = 0 To UBound(vTableAnns)

                Dim swTableAnn As SldWorks.TableAnnotation
                Set swTableAnn = vTableAnns(j)

                Dim cellVal As String
                cellVal = swTableAnn.Text(cellRow, cellColumn)

                If cellVal Like searchCellVal Then
                    Set FindTableByContent = swTableAnn
                    Exit Function
                End If

            Next

        End If

    Next

    Err.Raise vbError, "", "Failed to find the table annotation"

End Function
