VBA Macro to hide all sketches in the model using SOLIDWORKS API

Edit ArticleEdit Article
More 'Goodies'

This macro will hide (blank) or show (unblank) all sketches (2D and 3D) in the active document using SOLIDWORKS API.

If the active document is an assembly, sketches from all components will be included as well.

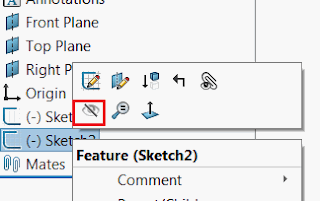

Hide sketch option in context menu
Hide sketch option in context menu

Configuration

Change HIDE_ALL_SKETCHES option to specify if sketches need to be hidden or shown.

CAD+

This macro is compatible with Toolbar+ and Batch+ tools so the buttons can be added to toolbar and assigned with shortcut for easier access or run in the batch mode.

Buttons in toolbar
Buttons in toolbar

In order to enable macro arguments set the ARGS constant to true

#Const ARGS = True

In this case it is not required to make copies of the macro to set individual options to hide and show. Instead use the -hide, -show arguments to hide and show sketches correspondingly.

You can download the icons for each button: hide sketches, show sketches or use your own icons.

Watch video demonstration

#Const ARGS = False 'True to use arguments from Toolbar+ or Batch+ instead of the constant

Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2

Const HIDE_ALL_SKETCHES As Boolean = False 'True to hide all sketches, False to show all sketches

Sub main()

    Set swApp = Application.SldWorks

    Dim hideAllSketches As Boolean

    #If ARGS Then

        Dim macroRunner As Object
        Set macroRunner = CreateObject("CadPlus.MacroRunner.Sw")

        Dim param As Object
        Set param = macroRunner.PopParameter(swApp)

        Dim vArgs As Variant
        vArgs = param.Get("Args")

        Dim operation As String
        operation = CStr(vArgs(0))

        Select Case LCase(operation)
            Case "-hide"
                hideAllSketches = True
            Case "-show"
                hideAllSketches = False
            Case Else
                Err.Raise vbError, "", "Invalid argument. Valid arguments -hide and -show"
        End Select
    #Else
        hideAllSketches = HIDE_ALL_SKETCHES
    #End If

    Set swModel = swApp.ActiveDoc
    Dim curScrollIntoView As Boolean
    curScrollIntoView = swApp.GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnsureVisible)
    swApp.SetUserPreferenceToggle swUserPreferenceToggle_e.swFeatureManagerEnsureVisible, False

try_:
    On Error GoTo catch_

    If Not swModel Is Nothing Then

        Dim swFeat As SldWorks.Feature
        Set swFeat = swModel.FirstFeature

        Dim swSketches() As SldWorks.Feature
        CollectAllSketchFeatures swFeat, swSketches, Not hideAllSketches

        If swModel.GetType() = swDocumentTypes_e.swDocASSEMBLY Then
            CollectAllComponentSketchFeatures swModel, swSketches, Not hideAllSketches
        End If

        If (Not swSketches) = -1 Then
            Err.Raise vbError, "", "No sketches found"
        End If

        If swModel.Extension.MultiSelect2(swSketches, False, Nothing) = UBound(swSketches) + 1 Then
            If hideAllSketches Then
                swModel.BlankSketch
            Else
                swModel.UnblankSketch
            End If
        Else
            Err.Raise vbError, "", "Failed to select sketches"
        End If

        GoTo finally_

    Else
        Err.Raise vbError, "", "Please open part or assembly"
    End If

catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:
    swApp.SetUserPreferenceToggle swUserPreferenceToggle_e.swFeatureManagerEnsureVisible, curScrollIntoView

End Sub

Sub CollectAllComponentSketchFeatures(assy As SldWorks.AssemblyDoc, feats() As SldWorks.Feature, isBlankFilter As Boolean)

    Dim vComps As Variant
    vComps = assy.GetComponents(False)

    Dim processedComps() As String

    Dim i As Integer

    For i = 0 To UBound(vComps)

        Dim swComp As SldWorks.Component2
        Set swComp = vComps(i)

        Dim key As String
        key = swComp.GetPathName() & ":" & swComp.ReferencedConfiguration

        If Not Contains(processedComps, key) Then

            If (Not processedComps) = -1 Then
                ReDim processedComps(0)
            Else
                ReDim Preserve processedComps(UBound(processedComps) + 1)
            End If

            processedComps(UBound(processedComps)) = key

            CollectAllSketchFeatures swComp.FirstFeature, feats, isBlankFilter

        End If

    Next

End Sub

Sub CollectAllSketchFeatures(firstFeat As SldWorks.Feature, feats() As SldWorks.Feature, isBlankFilter As Boolean)

    Const SKETCH_FEAT_TYPE_NAME As String = "ProfileFeature"
    Const SKETCH_3D_FEAT_TYPE_NAME As String = "3DProfileFeature"

    Dim swFeat As SldWorks.Feature
    Set swFeat = firstFeat

    While Not swFeat Is Nothing

        If swFeat.GetTypeName2 = SKETCH_FEAT_TYPE_NAME Or _
            swFeat.GetTypeName2 = SKETCH_3D_FEAT_TYPE_NAME Then

            Dim featVisible As swVisibilityState_e
            featVisible = swFeat.visible

            If featVisible = swVisibilityStateUnknown _
                Or (featVisible = swVisibilityStateHide And isBlankFilter) _
                Or (featVisible = swVisibilityStateShown And Not isBlankFilter) Then

                If (Not feats) = -1 Then
                    ReDim feats(0)
                Else
                    ReDim Preserve feats(UBound(feats) + 1)
                End If

                Set feats(UBound(feats)) = swFeat

            End If

        End If

        Set swFeat = swFeat.GetNextFeature

    Wend

End Sub

Function Contains(arr() As String, item As String) As Boolean

    If (Not arr) = -1 Then
        Contains = False
    Else
        Dim i As Integer

        For i = 0 To UBound(arr)
            If LCase(arr(i)) = LCase(item) Then
                Contains = True
                Exit Function
            End If
        Next

        Contains = False
    End If

End Function
