Import points cloud from CSV file into sketch via SOLIDWORKS API

Edit ArticleEdit Article
More 'Goodies'

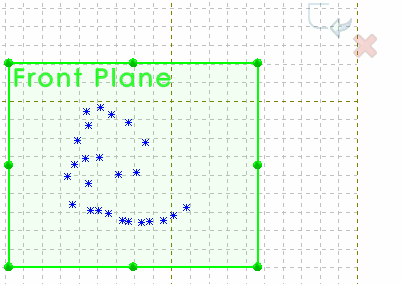

Points cloud in the sketch
Points cloud in the sketch

This macro imports the points read from the specified CSV (comma separated values) file into the active sketch using SOLIDWORKS API. Both 2D and 3D Sketches are supported.

Configuration

Macro has several configuration options which can be modified by changing the values of the constants at the beginning of the macro

Const USE_SYSTEM_UNITS As Boolean = True
Const FIRST_ROW_HEADER As Boolean = True
  • FIRST_ROW_HEADER specifies if the if the first row of the CSV file is considered as a header and should be ignored ignored. If CSV file doesn't contain the header set the value of the constant to False.
  • USE_SYSTEM_UNITS indicates if the coordinate values in the CSV file are in system units (meters). If this option is set to False, macro will use the current document units instead.
  • Macro can also import points relative to coordinate system. Pre-select the target coordinate system before running the macro otherwise the points will be inserted relative to global coordinate system

Input CSV file can contain 3 coordinates (X, Y, Z) or 2 coordinates (X, Y)

Sample Files

How To Run The Macro

  • Open the model and create 2D or 3D sketch (or edit existing sketch)
  • (Optional) Pre select coordinate system if points need to be imported relative to this system
  • Run the macro. Specify the full path to CSV file in the displayed file browse dialog
  • Click OK. Points are created in the active sketch

Const USE_SYSTEM_UNITS As Boolean = True
Const FIRST_ROW_HEADER As Boolean = True

Dim swApp As SldWorks.SldWorks

Sub main()

try_:

    On Error GoTo catch_

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSketch As SldWorks.Sketch

        Set swSketch = swModel.SketchManager.ActiveSketch

        If Not swSketch Is Nothing Then

            Dim vPoints As Variant
            Dim inputFile As String

            inputFile = swApp.GetOpenFileName("Specify the full path to CSV file", "", "CSV Files (*.csv)|*.csv|Text Files (*.txt)|*.txt|All Files (*.*)|*.*|", -1, "", "")

            If inputFile <> "" Then

                vPoints = ReadCsvFile(inputFile, FIRST_ROW_HEADER)

                vPoints = ConvertPointsLocations(vPoints, swModel, USE_SYSTEM_UNITS, GetSelectedCoordinateSystemTransform(swModel))

                DrawPoints swModel, vPoints

            End If

        Else
            Err.Raise vbError, "", "Please open 2D or 3D Sketch"
        End If

    Else
        Err.Raise vbError, "", "Please open the model"
    End If

    GoTo finally_

catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:

End Sub

Function GetSelectedCoordinateSystemTransform(model As SldWorks.ModelDoc2) As SldWorks.mathTransform

    Dim swSelMgr As SldWorks.SelectionMgr

    Set swSelMgr = model.SelectionManager

    If swSelMgr.GetSelectedObjectType3(1, -1) = swSelectType_e.swSelCOORDSYS Then
        Dim swCoordSysFeat As SldWorks.Feature
        Set swCoordSysFeat = swSelMgr.GetSelectedObject6(1, -1)
        Set GetSelectedCoordinateSystemTransform = model.Extension.GetCoordinateSystemTransformByName(swCoordSysFeat.Name)
    Else
        Set GetSelectedCoordinateSystemTransform = Nothing
    End If

End Function

Sub DrawPoints(model As SldWorks.ModelDoc2, vPoints As Variant)

    model.SketchManager.AddToDB = True

    Dim i As Integer

    For i = 0 To UBound(vPoints)

        Dim swSkPt As SldWorks.SketchPoint
        Dim vPt As Variant
        vPt = vPoints(i)

        Dim x As Double
        Dim y As Double
        Dim z As Double

        x = CDbl(vPt(0))
        y = CDbl(vPt(1))
        z = CDbl(vPt(2))

        Set swSkPt = model.SketchManager.CreatePoint(x, y, z)

        If swSkPt Is Nothing Then
            Err.Raise vbError, "", "Failed to create point at: " & x & "; " & y & "; " & z
        End If

    Next

    model.SketchManager.AddToDB = False

End Sub

Function ConvertPointsLocations(points As Variant, model As SldWorks.ModelDoc2, useSystemUnits As Boolean, mathTransform As SldWorks.mathTransform) As Variant

    Dim swMathUtils As SldWorks.MathUtility

    Set swMathUtils = swApp.GetMathUtility

    Dim convFact As Double
    convFact = 1

    If Not useSystemUnits Then
        Dim swUserUnit As SldWorks.UserUnit
        Set swUserUnit = model.GetUserUnit(swUserUnitsType_e.swLengthUnit)
        convFact = 1 / swUserUnit.GetConversionFactor()
    End If

    Dim i As Integer

    For i = 0 To UBound(points)

        Dim vPt As Variant
        vPt = points(i)

        Dim dPt(2) As Double

        If UBound(vPt) >= 0 Then
            dPt(0) = CDbl(vPt(0)) * convFact
        Else
            dPt(0) = 0
        End If

        If UBound(vPt) >= 1 Then
            dPt(1) = CDbl(vPt(1)) * convFact
        Else
            dPt(1) = 0
        End If

        If UBound(vPt) >= 2 Then
            dPt(2) = CDbl(vPt(2)) * convFact
        Else
            dPt(2) = 0
        End If

        If Not mathTransform Is Nothing Then

            Dim swMathPt As SldWorks.MathPoint

            Set swMathPt = swMathUtils.CreatePoint(dPt)
            Set swMathPt = swMathPt.MultiplyTransform(mathTransform)

            vPt = swMathPt.ArrayData

        Else
            vPt = dPt
        End If

        points(i) = vPt

    Next

    ConvertPointsLocations = points

End Function

Function ReadCsvFile(filePath As String, firstRowHeader As Boolean) As Variant

    'rows x columns
    Dim vTable() As Variant

    Dim fileName As String
    Dim tableRow As String
    Dim fileNo As Integer

    fileNo = FreeFile

    Open filePath For Input As #fileNo

    Dim isFirstRow As Boolean
    Dim isTableInit As Boolean

    isFirstRow = True
    isTableInit = False

    Do While Not EOF(fileNo)

        Line Input #fileNo, tableRow

        If Not isFirstRow Or Not firstRowHeader Then

            Dim vCells As Variant
            vCells = Split(tableRow, ",")

            Dim i As Integer

            Dim dCells() As Double
            ReDim dCells(UBound(vCells))

            For i = 0 To UBound(vCells)
                dCells(i) = CDbl(vCells(i))
            Next

            Dim lastRowIndex As Integer

            If Not isTableInit Then
                lastRowIndex = 0
                isTableInit = True
                ReDim Preserve vTable(lastRowIndex)
            Else
                lastRowIndex = UBound(vTable, 1) + 1
                ReDim Preserve vTable(lastRowIndex)
            End If

            vTable(lastRowIndex) = dCells

        End If

        If isFirstRow Then
            isFirstRow = False
        End If

    Loop

    Close #fileNo

    ReadCsvFile = vTable

End Function
