Select standard reference geometry (e.g. Front plane or origin) by type using SOLIDWORKS API

Macro+ Framework This is a Macro+ enabled VBA macro. Paste the code into a new macro and add the reference to Xarial.CadPlus.MacroPlus.tlb (Macro+ COM API for CAD+ Toolset for SOLIDWORKS) type library from the installation folder of CAD+ Toolset
This macro supports arguments, logs and outputs results. It can be used in Toolbar+, Batch+ Stand-Alone+, Batch+ Integrated and Batch+ for SOLIDWORKS PDM

More 'Goodies'

Right plane selected in the graphics view

This example demonstrates how to select standard plane (Top, Front or Right) or origin using SOLIDWORKS API by specifying its type so the selection will be consistent regardless of the plane name as it is not recommended to select the standard planes by their names as names are not consistent and may be changed in the template (e.g. different localization or standard).

This macro selects the primary planes or origin of root document. To select primary planes or origin of the specific component in the assembly, hover the mouse over any component's entity (you do not need to select it) and run the macro.

This macro works based on the fact that the default SOLIDWORKS planes are always ordered the same way, i.e. Front, Top and Right planes are the first planes in the model, positioned before the origin feature and cannot be reordered or removed.

Configuration

Target plane or origin

To configure the macro set the type of the plane to select in the REF_GEOM variable. Supported values: Right, Top, Front, Origin

Dim REF_GEOM As swRefGeom_e

#Else
    REF_GEOM = swRefGeom_e.Right
#End If

Scrolling to selection

This macro allows to specify if the plane should be scrolled into view by setting SCROLL constant

Const SCROLL As Boolean = False' scroll plane into view

Note, this macro will ignore the Feature Manager -> Scroll selected item into view option and scroll based on the option above preserving the setting in SOLIDWORKS.

Appending selection

Macro will append the selection if ctrl button is pressed unless the APPEND_SEL constant is set to true. In this case selection will alway be appended. This is useful when shortcut are used for the macro buttons as ctrl will conflict with shortcut.

Const APPEND_SEL As Boolean = True

CAD+

This macro is compatible with Toolbar+ and Batch+ tools so the buttons can be added to toolbar and assigned with shortcut for easier access or run in the batch mode.

In order to enable macro arguments set the ARGS constant to true

#Const ARGS = True

In this case it is not required to make copies of the macro to set individual target plane or origin. Instead use the FRONT, TOP, RIGHT, ORIGIN arguments for the corresponding target entity.

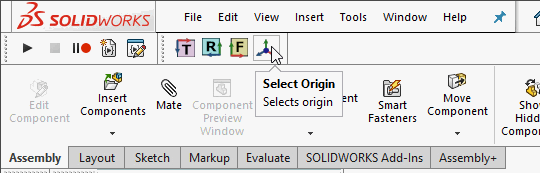

You can download the icons for each button: front plane, top plane, right plane, origin or use your own icons.

#Const ARGS = True
#Const TEST = FALSE

Declare PtrSafe Function GetKeyState Lib "user32" (ByVal nVirtKey As Long) As Integer
Const VK_CONTROL As Long = &H11

Public Enum swRefGeom_e
    Origin = 4
    Front = 1
    Top = 2
    Right = 3
End Enum

Dim REF_GEOM As swRefGeom_e
Const SCROLL As Boolean = False
Const APPEND_SEL As Boolean = False

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

#If ARGS Then

    Dim macroOper As Object
    Set macroOper = GetMacroOperation()

    Dim vArgs As Variant
    vArgs = macroOper.Arguments

    Dim arg As Object
    Set arg = vArgs(0)

    Dim planeName As String
    planeName = arg.GetValue()

    Select Case UCase(planeName)
        Case "ORIGIN"
            REF_GEOM = swRefGeom_e.Origin
        Case "TOP"
            REF_GEOM = swRefGeom_e.Top
        Case "FRONT"
            REF_GEOM = swRefGeom_e.Front
        Case "RIGHT"
            REF_GEOM = swRefGeom_e.Right
        Case Else
            Err.Raise vbError, "", "Not supported argument"
    End Select
#Else
    REF_GEOM = swRefGeom_e.Top
#End If

    If Not swModel Is Nothing Then

        If swModel.GetType() = swDocumentTypes_e.swDocASSEMBLY Or _
            swModel.GetType() = swDocumentTypes_e.swDocPART Then

            Dim swSelMgr As SldWorks.SelectionMgr
            Set swSelMgr = swModel.SelectionManager

            Dim swComp As SldWorks.Component2
            Set swComp = swSelMgr.GetSelectedObjectsComponent3(-1, -1)

            If swComp Is Nothing Then
                SelectRefGeom swModel.FirstFeature(), REF_GEOM
            Else
                SelectRefGeom swComp.FirstFeature(), REF_GEOM
            End If

        Else
            Err.Raise vbError, "", "Only assemblies and parts are supported"
        End If
    Else
        Err.Raise vbError, "", "Please open part or assembly"
    End If

End Sub

Sub SelectRefGeom(firstFeat As SldWorks.Feature, refGeomType As swRefGeom_e)

    Dim refGeomIndex As Integer

    Dim swFeat As SldWorks.Feature

    Set swFeat = firstFeat

    Do While Not swFeat Is Nothing

        If swFeat.GetTypeName = "RefPlane" Or swFeat.GetTypeName2() = "OriginProfileFeature" Then

            refGeomIndex = refGeomIndex + 1

            If CInt(refGeomType) = refGeomIndex Then

                Dim defScrollState As Boolean
                defScrollState = swApp.GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnsureVisible)
                swApp.SetUserPreferenceToggle swUserPreferenceToggle_e.swFeatureManagerEnsureVisible, SCROLL

                Dim append As Boolean

                If APPEND_SEL Then
                    append = True
                Else
                    append = GetKeyState(VK_CONTROL) < 0
                End If

                If refGeomType = Origin Then
                    SelectOrigin swFeat, append
                Else
                    swFeat.Select2 append, -1
                End If

                swApp.SetUserPreferenceToggle swUserPreferenceToggle_e.swFeatureManagerEnsureVisible, defScrollState

                Exit Sub

            End If

        End If

        Set swFeat = swFeat.GetNextFeature

    Loop

End Sub

Sub SelectOrigin(origFeat As SldWorks.Feature, append As Boolean)

    Dim swSketch As SldWorks.Sketch
    Set swSketch = origFeat.GetSpecificFeature2

    Dim swSkPoint As SldWorks.SketchPoint
    Set swSkPoint = swSketch.GetSketchPoints2()(0)

    swSkPoint.Select4 append, Nothing

End Sub

Function GetMacroOperation(Optional dummy As Variant = Empty) As Object

    Dim macroOper As Object

    #If TEST Then
        Dim swCadPlusFact As Object
        Set swCadPlusFact = CreateObject("CadPlusFactory.Sw")

        Set swCadPlus = swCadPlusFact.Create(swApp, False)

        Dim ARGS(0) As String
        ARGS(0) = "FRONT"
        Set macroOper = swCadPlus.CreateMacroOperation(swApp.ActiveDoc, "", ARGS)
    #Else
        Dim macroOprMgr As Object
        Set macroOprMgr = CreateObject("CadPlus.MacroOperationManager")

        Set macroOper = macroOprMgr.PopOperation(swApp)
    #End If

    Set GetMacroOperation = macroOper

End Function
