Select any SOLIDWORKS objects in a batch using API

Edit ArticleEdit Article

Different object types selected in the graphics area
Different object types selected in the graphics area

This example demonstrates how to select any SOLIDWORKS objects (entities, features, annotations, etc.) in a batch mode.

This technique can be useful when the type of the object is not known in advance. It also gives performance benefits when selecting several objects at a time instead of selecting one-by-one using SOLIDWORKS API.

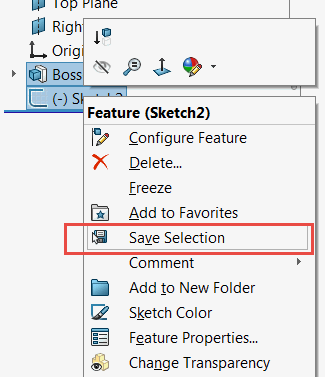

The following example provides similar functionality to SOLIDWORKS Create Selection Set

Create Selection Set context menu command
Create Selection Set context menu command

  • Open any model and select any objects (this can be different types objects like features, entities, annotations etc.)
  • Run the macro. Macro will collect the pointers of all selected object
  • Macro clears the selection and stops the execution
  • Continue the execution and all previously selected objects are reselected.
VBA Example
Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim vObjects As Variant
        vObjects = GetAllSelectedObjects(swModel)

        swModel.ClearSelection2 True

        Stop

        swModel.Extension.MultiSelect2 vObjects, False, Nothing

    Else
        MsgBox "Please open the document"
    End If

End Sub

Function GetAllSelectedObjects(model As SldWorks.ModelDoc2) As Variant

    Dim swSelMgr As SldWorks.SelectionMgr
    Dim swObjects() As Object

    Set swSelMgr = model.SelectionManager

    Dim i As Integer

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

        Dim swObj As Object
        Set swObj = swSelMgr.GetSelectedObject6(i, -1)

        ReDim Preserve swObjects(i - 1)
        Set swObjects(i - 1) = swObj
    Next

    GetAllSelectedObjects = swObjects

End Function
C# Example
using System.Collections.Generic;
using SolidWorks.Interop.sldworks;
using System.Diagnostics;
using System.Runtime.InteropServices;

namespace CodeStack
{
    public partial class SolidWorksMacro
    {
        public void Main()
        {
            List<DispatchWrapper> swObjects = new List<DispatchWrapper>();

            IModelDoc2 model = swApp.IActiveDoc2;

            if (model != null)
            {
                ISelectionMgr selMgr = model.ISelectionManager;

                for (int i = 0; i < selMgr.GetSelectedObjectCount2(-1); i++)
                {
                    object swSelObj = selMgr.GetSelectedObject6(i + 1, -1);
                    swObjects.Add(new DispatchWrapper(swSelObj));//it is required to wrap dispatch pointers to allow selection of objects of different types (i.e. faces, annotations, components etc.) together
                }

                model.ClearSelection2(true);

                Debugger.Break();

                model.Extension.MultiSelect2(swObjects.ToArray(), false, null);
            }
            else
            {
                swApp.SendMsgToUser("Please open the model");
            }
        }

        public SldWorks swApp;
    }
}
