Macro to select all dimensions from the drawing views of the active sheet of SOLIDWORKS drawing

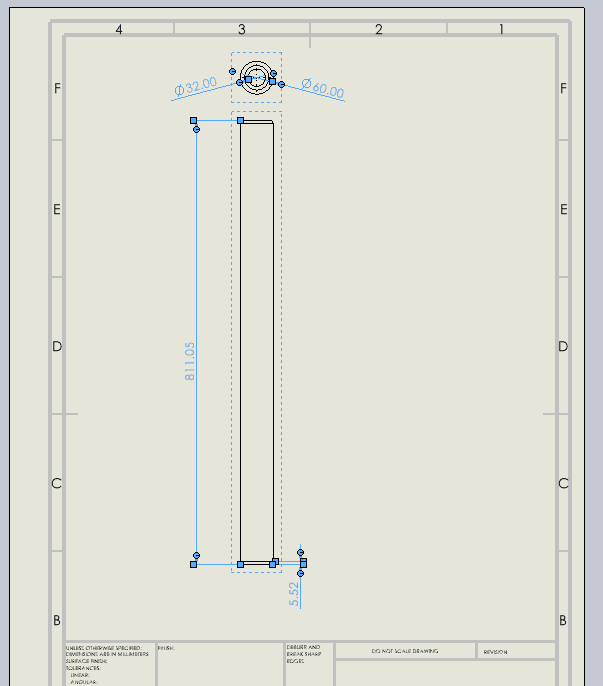

All dimensions selected in the drawing views

This VBA macro demonstrates how to find all dimensions of all drawing views in the active sheet of the SOLIDWORKS drawing.

All dimensions are selected in a batch mode.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Dim swDraw As SldWorks.DrawingDoc

    Set swModel = swApp.ActiveDoc

    Set swDraw = swModel

    Dim swSheet As SldWorks.Sheet

    Set swSheet = swDraw.GetCurrentSheet

    Dim vViews As Variant

    vViews = swSheet.GetViews

    Dim swDispDims() As SldWorks.DisplayDimension

    Dim i As Integer

    For i = 0 To UBound(vViews)

        Dim swView As SldWorks.View
        Set swView = vViews(i)

        Dim swDispDim As SldWorks.DisplayDimension
        Set swDispDim = swView.GetFirstDisplayDimension5()

        While Not swDispDim Is Nothing

            If (Not swDispDims) = -1 Then
                ReDim swDispDims(0)
            Else
                ReDim Preserve swDispDims(UBound(swDispDims) + 1)
            End If

            Debug.Print swDispDim.GetDimension2(0).FullName

            Set swDispDims(UBound(swDispDims)) = swDispDim

            Set swDispDim = swDispDim.GetNext5

        Wend

    Next

    Dim selCount As Long
    selCount = swModel.Extension.MultiSelect2(swDispDims, False, Nothing)

    If selCount <> UBound(swDispDims) + 1 Then
        Err.Raise vbError, "", "Failed to select dimensions"
    End If

End Sub
