Macro to print SOLIDWORKS documents

Edit ArticleEdit Article
More 'Goodies'

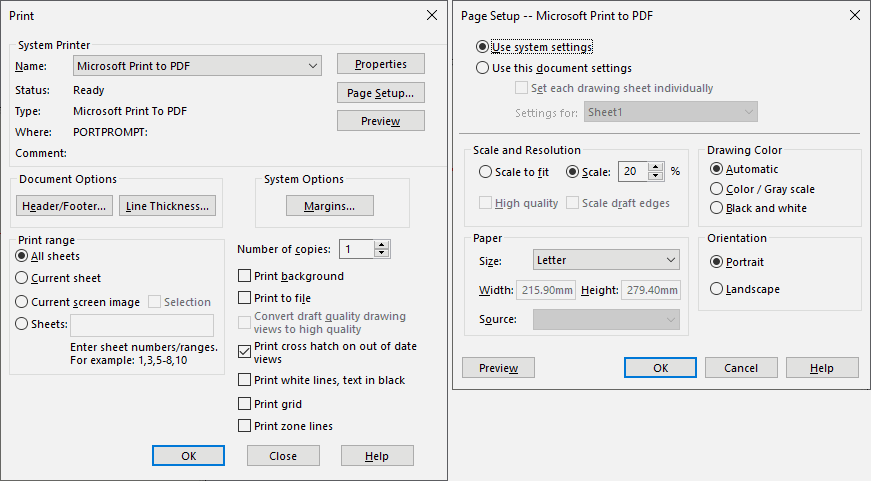

Printer and page setup
Printer and page setup

This VBA macro allows to print active SOLIDWORKS document. It is possible to specify the settings for printing: printer name, printer range, orientation, paper size and scale

Settings

To configure settings change the values of constants at the top of the macro as described below

Const PRINTER_NAME As String = "Microsoft Print To PDF" 'full name of the printer
Const PRINT_RANGE As String = "1-3,5" 'range to print. Specify * to print all pages or a range
Const PRINT_ORIENTATION As Integer = swPageSetupOrientation_e.swPageSetupOrient_Landscape 'orientation landscape or portrait
Const PRINTER_PAPER_SIZE As String = "A3" 'Paper size to print to
Const PRINT_SCALE As String = "*" 'Scale of print. Use * to scale to fit or a value of scale % (from 1 to 1000)

Private Declare PtrSafe Function DeviceCapabilities Lib "winspool.drv" Alias "DeviceCapabilitiesA" (ByVal lpDeviceName As String, ByVal lpPort As String, ByVal iIndex As Long, ByRef lpOutput As Any, ByRef lpDevMode As Any) As Long

Dim swApp As SldWorks.SldWorks

Const PRINTER_NAME As String = "Microsoft Print To PDF"
Const PRINT_RANGE As String = "1-3,5"
Const PRINT_ORIENTATION As Integer = swPageSetupOrientation_e.swPageSetupOrient_Landscape
Const PRINTER_PAPER_SIZE As String = "A3"
Const PRINT_SCALE As String = "*"

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Then
        Err.Raise vbError, "", "Please open the document"
    End If

    Dim swPageSetup As SldWorks.PageSetup

    Set swPageSetup = swModel.PageSetup

    Dim origPrinter As String
    Dim origPrinterPaperSize As Integer
    Dim origScaleToFit As Boolean
    Dim origScale As Double
    Dim origOrientation As Integer
    Dim origUsePageSetup As Integer

    origPrinter = swModel.Printer
    origPrinterPaperSize = swPageSetup.PrinterPaperSize
    origScaleToFit = swPageSetup.ScaleToFit
    origScale = swPageSetup.Scale2
    origOrientation = swPageSetup.Orientation
    origUsePageSetup = swModel.Extension.UsePageSetup

    swModel.Printer = PRINTER_NAME
    swPageSetup.PrinterPaperSize = GetPaper(PRINTER_NAME, PRINTER_PAPER_SIZE)

    If PRINT_SCALE = "*" Then
        swPageSetup.ScaleToFit = True
    Else
        swPageSetup.ScaleToFit = False
        swPageSetup.Scale2 = CDbl(PRINT_SCALE)
    End If

    swPageSetup.Orientation = PRINT_ORIENTATION

    swModel.Extension.UsePageSetup = swPageSetupInUse_e.swPageSetupInUse_Document

    Dim swPrintSpec As SldWorks.PrintSpecification
    Set swPrintSpec = swModel.Extension.GetPrintSpecification

    swPrintSpec.printRange = GetPrintRange(PRINT_RANGE)

    swModel.Extension.PrintOut4 PRINTER_NAME, "", swPrintSpec

    swModel.Printer = origPrinter
    swPageSetup.PrinterPaperSize = origPrinterPaperSize
    swPageSetup.ScaleToFit = origScaleToFit
    swPageSetup.Scale2 = origScale
    swPageSetup.Orientation = origOrientation
    swModel.Extension.UsePageSetup = origUsePageSetup

End Sub

Function GetPrintRange(range As String) As Variant

    Dim printRange() As Long

    If range = "*" Then
        ReDim printRange(1)
        printRange(0) = -1
        printRange(1) = -1
    Else

        Dim vPageRanges As Variant
        vPageRanges = Split(range, ",")

        ReDim printRange((UBound(vPageRanges) + 1) * 2 - 1)

        Dim i As Integer

        For i = 0 To UBound(vPageRanges)

            Dim vStartEndPages As Variant
            vStartEndPages = Split(Trim(CStr(vPageRanges(i))), "-")

            Dim startPage As Long
            Dim endPage As Long
            startPage = CLng(vStartEndPages(0))

            If UBound(vStartEndPages) = 0 Then
                endPage = startPage
            ElseIf UBound(vStartEndPages) = 1 Then
                endPage = CLng(vStartEndPages(1))
            Else
                Err.Raise vbError, "", "Invalid page range: " & CStr(vPageRanges(i))
            End If

            printRange(i * 2) = startPage
            printRange(i * 2 + 1) = endPage

        Next

    End If

    GetPrintRange = printRange

End Function

Function GetPaper(printerName As String, paperName As String) As Integer

    Const DC_PAPERNAMES As Integer = &H10
    Const DC_PAPERS As Integer = &H2

    Dim papersCount As Integer
    papersCount = DeviceCapabilities(printerName, "", DC_PAPERS, ByVal vbNullString, 0)

    If papersCount > 0 Then

        Dim papersCodes() As Integer
        ReDim papersCodes(papersCount - 1)

        DeviceCapabilities printerName, "", DC_PAPERS, papersCodes(0), 0

        Dim papersNames As String
        papersNames = String$(64 * papersCount, 0)
        DeviceCapabilities printerName, "", DC_PAPERNAMES, ByVal papersNames, 0

        Dim i As Integer

        For i = 0 To papersCount
            If LCase(ParsePaperName(papersNames, 64 * i + 1)) = LCase(paperName) Then
                GetPaper = papersCodes(i)
            End If
        Next
    Else
        Err.Raise vbError, "", "No sizes available for the specified printer"
    End If

End Function

Function ParsePaperName(papersNames As String, offset As Integer) As String

    Dim paperName As String

    paperName = Mid(papersNames, offset, 64)

    Dim nullCharIndex As Integer
    nullCharIndex = InStr(paperName, vbNullChar)

    If nullCharIndex <> 0 Then
        paperName = Left$(paperName, nullCharIndex - 1)
    End If

    ParsePaperName = paperName

End Function
