Macro feature which adds watermark into SOLIDWORKS model

This article will explain how to embed a watermark feature in any model using SOLIDWORKS API to protect intellectual property or indicate that the model is to be used under the special conditions. This can be useful if license needs to be embedded into the model which cannot be edited by 3rd parties.

The inserted feature cannot be deleted, suppressed, removed or changed by user interface or API.

The feature can be inserted into any SOLIDWORKS model (part, document, drawing or template).

Feature is fully embedded into the model.

The solution consists of 2 parts:

Authoring macro. This is used to insert the watermark. This macro is not embedded to the model
Watermark macro. This macro represents a watermark feature and will be directly embedded into the model

Setting up authoring macro

Create new macro in SOLIDWORKS (Tools->Macro->New... command from the SOLIDWORKS menu)
Specify the name to save this file
Copy the following code into the macro

Const WATERMARK_MACRO_NAME As String = "Watermark.swp"
Const SECURITY_NOTE As String = "www.codestack.net"

Const BASE_NAME As String = "Watermark"

Sub main()

    Dim swApp As SldWorks.SldWorks
    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim watermarkMacroPath As String
        watermarkMacroPath = swApp.GetCurrentMacroPathFolder() & "\" & WATERMARK_MACRO_NAME
        Dim vMethods(8) As String
        Dim moduleName As String

        GetMacroEntryPoint swApp, watermarkMacroPath, moduleName

        vMethods(0) = watermarkMacroPath: vMethods(1) = moduleName: vMethods(2) = "swmRebuild"
        vMethods(3) = watermarkMacroPath: vMethods(4) = moduleName: vMethods(5) = "swmEditDefinition"
        vMethods(6) = watermarkMacroPath: vMethods(7) = moduleName: vMethods(8) = "swmSecurity"

        Dim iconsDir As String
        iconsDir = swApp.GetCurrentMacroPathFolder() & "\Icons\"

        Dim icons(8) As String
        icons(0) = iconsDir & "watermark_20x20.bmp"
        icons(1) = iconsDir & "watermark-suppressed_20x20.bmp"
        icons(2) = iconsDir & "watermark_20x20.bmp"

        icons(3) = iconsDir & "watermark_32x32.bmp"
        icons(4) = iconsDir & "watermark-suppressed_32x32.bmp"
        icons(5) = iconsDir & "watermark_32x32.bmp"

        icons(6) = iconsDir & "watermark_40x40.bmp"
        icons(7) = iconsDir & "watermark-suppressed_40x40.bmp"
        icons(8) = iconsDir & "watermark_40x40.bmp"

        Dim swFeat As SldWorks.Feature

        Set swFeat = swModel.FeatureManager.InsertMacroFeature3(BASE_NAME, "", vMethods, _
            Empty, Empty, Empty, Empty, Empty, Empty, _
            icons, swMacroFeatureOptions_e.swMacroFeatureEmbedMacroFile + swMacroFeatureOptions_e.swMacroFeatureAlwaysAtEnd)

        If Not swFeat Is Nothing Then
            Dim swSecNote As SldWorks.note
            If SECURITY_NOTE <> "" Then
                Set swSecNote = swModel.FeatureManager.InsertSecurityNote(SECURITY_NOTE, swFeat)
            End If
        Else
            MsgBox "Failed to create watermark feature"
        End If

    Else
        MsgBox "Please open model"
    End If

End Sub

Sub GetMacroEntryPoint(app As SldWorks.SldWorks, macroPath As String, ByRef moduleName As String)

    Dim vMethods As Variant
    vMethods = app.GetMacroMethods(macroPath, swMacroMethods_e.swAllMethods)

    Dim i As Integer

    If Not IsEmpty(vMethods) Then

        For i = 0 To UBound(vMethods)
            Dim vData As Variant
            vData = Split(vMethods(i), ".")

            If i = 0 Or LCase(vData(1)) = "swmRebuild" Then
                moduleName = vData(0)
            End If
        Next

    End If

End Sub

In order to add custom icons, download the Icons file and unzip into the Icons sub-folder next to the macro feature file

Setting up watermark macro

Create another new macro
Specify the name of this macro as Watermark.swp and save it to the same folder as previous authoring macro

If different name is used it is required to modify this name in the following constant of the authoring macro

Const WATERMARK_MACRO_NAME = "Watermark.swp"

Change the security note in the constant to be displayed as read-only non-modifiable note.

Const SECURITY_NOTE = "www.codestack.net"

Copy the following code into the macro

Const MESSAGE As String = "Sample model by CodeStack"
Const FEATURE_NAME As String = "www.codestack.net"

Function swmRebuild(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant
    swmRebuild = True
End Function

Function swmEditDefinition(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant

    On Error Resume Next

    varApp.SendMsgToUser2 MESSAGE, swMessageBoxIcon_e.swMbInformation, swMessageBoxBtn_e.swMbOk
    swmEditDefinition = True

End Function

Function swmSecurity(varApp As Variant, varDoc As Variant, varFeat As Variant) As Variant

    On Error Resume Next

    Const swMacroFeatureSecurityCannotBeDeleted As Long = 1
    Const swMacroFeatureSecurityCannotBeSuppressed As Long = 4
    Const swMacroFeatureSecurityCannotBeReplaced As Long = 8
    Const swMacroFeatureSecurityEnableNote As Long = 16

    swmSecurity = swMacroFeatureSecurityCannotBeDeleted + swMacroFeatureSecurityCannotBeReplaced + swMacroFeatureSecurityCannotBeSuppressed + swMacroFeatureSecurityEnableNote

    If varFeat.Name <> FEATURE_NAME Then
        varFeat.Name = FEATURE_NAME
    End If

End Function

Modifying the parameters

There are few parameters which can be modified for the macro which are defined as constants at the top of the macro

Const MESSAGE As String = "Watermark Feature by CodeStack"
Const FEATURE_NAME As String = "www.codestack.net"

MESSAGE is the custom message displayed when the watermark feature is edited by the user
FEATURE_NAME name of the watermark feature in the Feature manager tree

Setting the macro password

Assign the password to the watermark macro so it cannot be changed by users.

Select Properties command from the context menu of Watermark macro

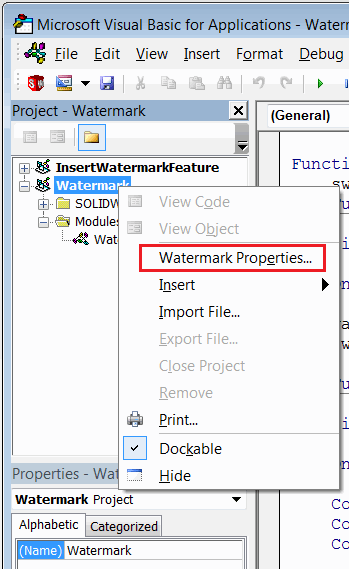

Properties command in the context menu of VBA macro

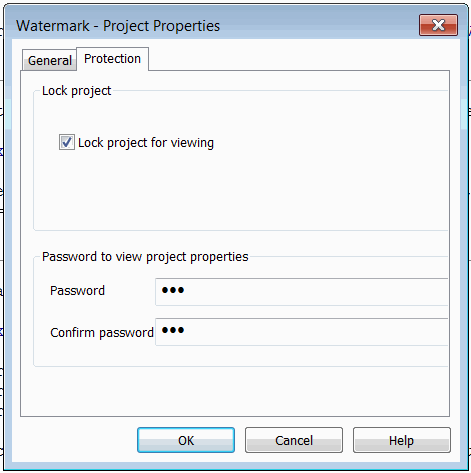

Select the Protection tab
Check the Lock project for viewing option
Specify the password in the password boxes

Save the macro and close

Inserting the watermark

To insert the watermark just open the model and run the Authoring Macro
Save the model

Watermark behaviour

Watermark feature will always be moved to the bottom of the feature tree
When definition of the watermark feature is edited

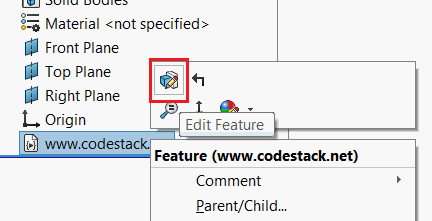

Calling the Edit definition of Watermark feature

the custom message is displayed

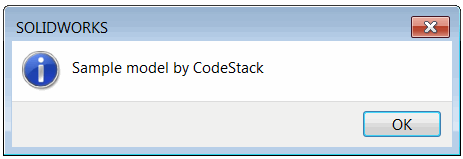

Custom message box displayed while editing of Watermark feature

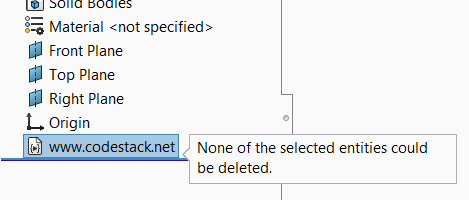

The following message is displayed on attempt to delete the feature

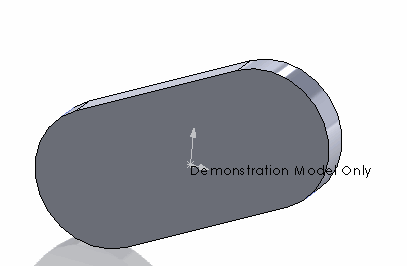

Non editable security note is added in the model at the origin

Feature name cannot be changed. It is possible to rename it, but the name will be reverted while state update (e.g. select, rebuild, open model, etc.)
