Add location label to a drawing view

Edit ArticleEdit Article

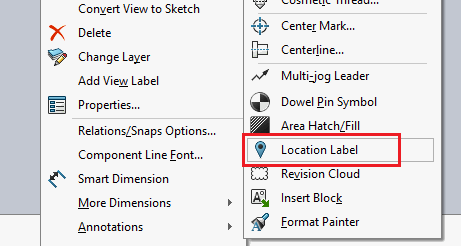

Inserting location label
Inserting location label

This VBA macro provides a workaround for missing SOLIDWORKS API to insert the location label to a drawing view.

Specify the name of the view as VIEW_NAME constant.

Only views compatible with location label are supported, e.g. auxillary, detailed, etc.

#If VBA7 Then
     Private Declare PtrSafe Function SendMessage Lib "User32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal wMsg As Long, ByVal wParam As Long, lParam As Any) As Long
#Else
     Private Declare Function SendMessage Lib "User32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal wMsg As Long, ByVal wParam As Long, lParam As Any) As Long
#End If

Dim swApp As SldWorks.SldWorks
Const VIEW_NAME As String = "Drawing View2"

Sub main()

    Set swApp = Application.SldWorks

    Dim swDraw As SldWorks.DrawingDoc

    Set swDraw = swApp.ActiveDoc

    If Not swDraw Is Nothing Then
        InsertLocationLabel swDraw, swDraw.FeatureByName(VIEW_NAME).GetSpecificFeature
    Else
        MsgBox "Please open drawing"
    End If

End Sub

Sub InsertLocationLabel(draw As SldWorks.DrawingDoc, view As SldWorks.view)

    Dim swModel As SldWorks.ModelDoc2
    Set swModel = draw

    If False <> swModel.Extension.SelectByID2(view.Name, "DRAWINGVIEW", 0, 0, 0, False, -1, Nothing, 0) Then

        Const WM_COMMAND As Long = &H111
        Const ADD_LOCATION_LABEL As Long = 52041

        Dim swFrame As SldWorks.Frame

        Set swFrame = swApp.Frame

        SendMessage swFrame.GetHWnd(), WM_COMMAND, ADD_LOCATION_LABEL, 0
    Else
        Err.Raise vbError, "", "Failed to select view"
    End If

End Sub
