Macro to import and export all layers from SOLIDWORKS drawings into a text file

Edit Article

More 'Goodies'

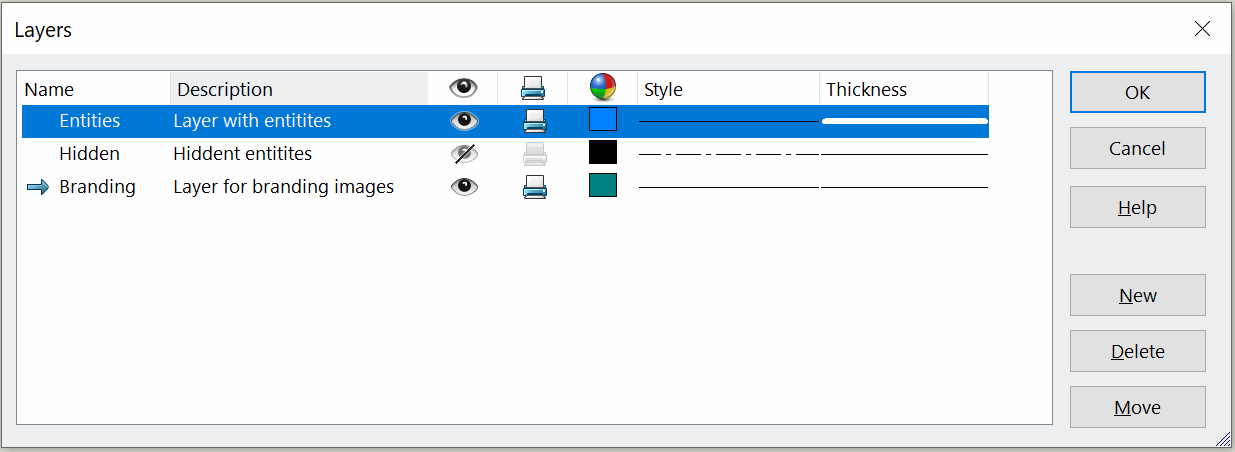

These macros allow to import and export the information from the SOLIDWORKS drawing layers into the text file.

The following information is imported and exported:

Name
Description
Visibility
Will Print
Color
Style
Thickness

Format

This macro exports all the information into the output text file in the following format

Layer: Entities
    Description: Layer with entities
    Color: 0 128 255
    Printable: True
    Style: 0
    Visible: True
    Thickness: 5

Layer: Branding
    Description: Layer for branding images
    Color: 0 128 128
    Printable: True
    Style: 0
    Visible: True
    Thickness: 0

By default file is saved or loaded in th same folder as the original file with the prefix _Layers.txt

CAD+

This macro is compatible with Toolbar+ and Batch+ tools so the buttons can be added to toolbar and assigned with shortcut for easier access or run in the batch mode.

In order to enable macro arguments set the ARGS constant to true

#Const ARGS = True

Path the path to text file to import or export as a macro argument.

Export

#Const ARGS = False 'True to use arguments from Toolbar+ or Batch+ instead of the constant

Const TOKEN_LAYER = "Layer: "
Const TOKEN_DESCRIPTION = "Description: "
Const TOKEN_COLOR = "Color: "
Const TOKEN_PRINTABLE = "Printable: "
Const TOKEN_STYLE = "Style: "
Const TOKEN_VISIBLE = "Visible: "
Const TOKEN_THICKNESS = "Thickness: "

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swDraw As SldWorks.DrawingDoc

    Set swDraw = swApp.ActiveDoc

    Dim filePath As String

    #If ARGS Then

        Dim macroRunner As Object
        Set macroRunner = CreateObject("CadPlus.MacroRunner.Sw")

        Dim param As Object
        Set param = macroRunner.PopParameter(swApp)

        Dim vArgs As Variant
        vArgs = param.Get("Args")

        filePath = CStr(vArgs(0))

    #Else
        filePath = swDraw.GetPathName
        If filePath <> "" Then
            filePath = Left(filePath, InStrRev(filePath, ".") - 1) & "_Layers.txt"
        Else
            Err.Raise vbError, "", "If output file path is not specified file must be saved"
        End If
    #End If

    If Not swDraw Is Nothing Then
        ExportLayers swDraw, filePath
    Else
        Err.Raise vbError, "", "Open drawing"
    End If

End Sub

Sub ExportLayers(draw As SldWorks.DrawingDoc, filePath As String)

    Dim swLayerMgr As SldWorks.LayerMgr

    Set swLayerMgr = draw.GetLayerManager

    Dim vLayers As Variant
    vLayers = swLayerMgr.GetLayerList

    Dim fileNmb As Integer
    fileNmb = FreeFile

    Open filePath For Output As #fileNmb

    Dim i As Integer

    For i = 0 To UBound(vLayers)

        Dim layerName As String
        layerName = CStr(vLayers(i))

        Dim swLayer As SldWorks.Layer
        Set swLayer = swLayerMgr.GetLayer(layerName)

        Dim RGBHex As String
        RGBHex = Right("000000" & Hex(swLayer.Color), 6)

        Print #fileNmb, TOKEN_LAYER & swLayer.Name
        Print #fileNmb, "    " & TOKEN_DESCRIPTION & swLayer.Description
        Print #fileNmb, "    " & TOKEN_COLOR & CInt("&H" & Mid(RGBHex, 5, 2)) & " " & CInt("&H" & Mid(RGBHex, 3, 2)) & " " & CInt("&H" & Mid(RGBHex, 1, 2))
        Print #fileNmb, "    " & TOKEN_PRINTABLE & swLayer.Printable
        Print #fileNmb, "    " & TOKEN_STYLE & swLayer.Style
        Print #fileNmb, "    " & TOKEN_VISIBLE & swLayer.Visible
        Print #fileNmb, "    " & TOKEN_THICKNESS & swLayer.Width
        Print #fileNmb, ""

    Next

    Close #fileNmb

End Sub

Import

#Const ARGS = False 'True to use arguments from Toolbar+ or Batch+ instead of the constant

Const TOKEN_LAYER = "Layer: "
Const TOKEN_DESCRIPTION = "Description: "
Const TOKEN_COLOR = "Color: "
Const TOKEN_PRINTABLE = "Printable: "
Const TOKEN_STYLE = "Style: "
Const TOKEN_VISIBLE = "Visible: "
Const TOKEN_THICKNESS = "Thickness: "

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swDraw As SldWorks.DrawingDoc

    Set swDraw = swApp.ActiveDoc

    Dim filePath As String

    #If ARGS Then

        Dim macroRunner As Object
        Set macroRunner = CreateObject("CadPlus.MacroRunner.Sw")

        Dim param As Object
        Set param = macroRunner.PopParameter(swApp)

        Dim vArgs As Variant
        vArgs = param.Get("Args")

        filePath = CStr(vArgs(0))

    #Else
        filePath = swDraw.GetPathName
        If filePath <> "" Then
            filePath = Left(filePath, InStrRev(filePath, ".") - 1) & "_Layers.txt"
        Else
            Err.Raise vbError, "", "If output file path is not specified file must be saved"
        End If
    #End If

    If Not swDraw Is Nothing Then
        ImportLayers swDraw, filePath
    Else
        Err.Raise vbError, "", "Open drawing"
    End If

End Sub

Sub ImportLayers(draw As SldWorks.DrawingDoc, filePath As String)

    Dim swLayerMgr As SldWorks.LayerMgr

    Set swLayerMgr = draw.GetLayerManager

    Set fso = CreateObject("Scripting.FileSystemObject")

    If fso.FileExists(filePath) Then

        Dim swCurrentLayer As SldWorks.Layer

        Set file = fso.OpenTextFile(filePath)

        Do Until file.AtEndOfStream

            Dim line As String

            line = file.ReadLine

            Dim value As String

            If IsToken(line, TOKEN_LAYER, value) Then

                Set swCurrentLayer = swLayerMgr.GetLayer(value)

                If swCurrentLayer Is Nothing Then
                    swLayerMgr.AddLayer value, "", RGB(255, 255, 255), swLineStyles_e.swLineCENTER, swLineWeights_e.swLW_CUSTOM
                    Set swCurrentLayer = swLayerMgr.GetLayer(value)
                End If

                If swCurrentLayer Is Nothing Then
                    Err.Raise vbError, "", "Failed to access layer " & value
                End If

            Else

                If swCurrentLayer Is Nothing Then
                    Err.Raise vbError, "", "Current layer is not set"
                End If

                If IsToken(line, TOKEN_DESCRIPTION, value) Then
                    swCurrentLayer.Description = value
                ElseIf IsToken(line, TOKEN_COLOR, value) Then
                    Dim vRgb As Variant
                    vRgb = Split(value, " ")
                    swCurrentLayer.Color = RGB(CInt(Trim(CStr(vRgb(0)))), CInt(Trim(CStr(vRgb(1)))), CInt(Trim(CStr(vRgb(2)))))
                ElseIf IsToken(line, TOKEN_PRINTABLE, value) Then
                    swCurrentLayer.Printable = CBool(value)
                ElseIf IsToken(line, TOKEN_STYLE, value) Then
                    swCurrentLayer.Style = CInt(value)
                ElseIf IsToken(line, TOKEN_VISIBLE, value) Then
                    swCurrentLayer.Visible = CBool(value)
                ElseIf IsToken(line, TOKEN_THICKNESS, value) Then
                    swCurrentLayer.Width = CInt(value)
                End If

            End If

        Loop

        file.Close

    Else
        Err.Raise vbError, "", "File does not exist"
    End If

End Sub

Function IsToken(txt As String, token As String, ByRef value As String) As Boolean

    txt = Trim(txt)

    If LCase(Left(txt, Len(token))) = LCase(token) Then
        value = Trim(Right(txt, Len(txt) - Len(token)))
        IsToken = True
    Else
        value = ""
        IsToken = False
    End If

End Function
