SOLIDWORKS macro to update referenced configuration from BOM tables

This macro will update the referenced configurations for all Bill of Materials (BOM) tables on the active drawing document using SOLIDWORKS API.

List of configurations to use in the BOM table

Bill of Materials tables are not associated with the drawing views and will exist even in case view is deleted. BOMs are not linked to the referenced configuration of the view. So if the view's referenced configuration is changed - the BOM won't update.

This macro will find all BOM tables and update their referenced configurations based on the default view of the sheet.

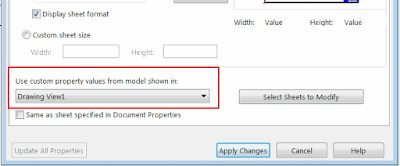

Use custom properties value from model option in the sheet properties

Dim swApp As SldWorks.SldWorks
Dim swDraw As SldWorks.DrawingDoc

Sub main()

    Set swApp = Application.SldWorks

    Set swDraw = swApp.ActiveDoc

    Dim vSheetNames As Variant

    vSheetNames = swDraw.GetSheetNames

    Dim i As Integer

    For i = 0 To UBound(vSheetNames)

        Dim swSheet As SldWorks.Sheet
        Set swSheet = swDraw.Sheet(vSheetNames(i))

        Dim swView As SldWorks.View
        Set swView = GetPropertiesView(swSheet)

        Dim vBomFeatures As Variant
        vBomFeatures = GetBomFeatures(swSheet)
        ProcessView swView, vBomFeatures

    Next

End Sub

Sub ProcessView(swView As SldWorks.View, vBomFeatures As Variant)

    If Not IsEmpty(vBomFeatures) Then

        Dim i As Integer

        For i = 0 To UBound(vBomFeatures)

            Dim swBomFeat As SldWorks.BomFeature

            Set swBomFeat = vBomFeatures(i)

            Dim vConfVis As Variant
            Dim vConfNames As Variant
            vConfNames = swBomFeat.GetConfigurations(False, vConfVis)

            Dim visConfIndex As Integer

            Dim j As Integer

            For j = 0 To UBound(vConfNames)

                vConfVis(j) = UCase(vConfNames(j)) = UCase(swView.ReferencedConfiguration)

            Next

            swBomFeat.SetConfigurations False, vConfVis, vConfNames

        Next

    End If

End Sub

Function GetBomFeatures(swSheet As SldWorks.Sheet) As Variant

    Dim vSheets As Variant
    vSheets = swDraw.GetViews()

    Dim i As Integer

    For i = 0 To UBound(vSheets)

        Dim vViews As Variant
        vViews = vSheets(i)

        Dim swSheetView As SldWorks.View
        Set swSheetView = vViews(0)

        If UCase(swSheetView.Name) = UCase(swSheet.GetName()) Then

            Dim swBomFeatures() As SldWorks.BomFeature

            Dim vTables As Variant
            vTables = swSheetView.GetTableAnnotations()

            Dim j As Integer
            Dim isArrInit As Boolean

            For j = 0 To UBound(vTables)

                Dim swTableAnn As SldWorks.TableAnnotation
                Set swTableAnn = vTables(j)

                If swTableAnn.Type = swTableAnnotationType_e.swTableAnnotation_BillOfMaterials Then
                    If False = isArrInit Then
                        isArrInit = True
                        ReDim swBomFeatures(0)
                    Else
                        ReDim Preserve swBomFeatures(UBound(swBomFeatures) + 1)
                    End If

                    Dim swBomTableAnn As SldWorks.BomTableAnnotation
                    Set swBomTableAnn = swTableAnn

                    Set swBomFeatures(UBound(swBomFeatures)) = swBomTableAnn.BomFeature

                End If

            Next

            GetBomFeatures = swBomFeatures
            Exit Function
        End If

    Next

End Function

Function GetPropertiesView(swSheet As SldWorks.Sheet) As SldWorks.View

    Dim vViews As Variant

    vViews = swSheet.GetViews

    If Not IsEmpty(vViews) Then

        Dim i As Integer

        For i = 0 To UBound(vViews)

            Dim swView As SldWorks.View
            Set swView = vViews(i)

            If UCase(swView.Name) = UCase(swSheet.CustomPropertyView) Then
                Set GetPropertiesView = swView
                Exit Function
            End If

        Next

        Set GetPropertiesView = vViews(0) 'use first one

    End If

End Function
