Traverse all dimensions of component or model using SOLIDWORKS API

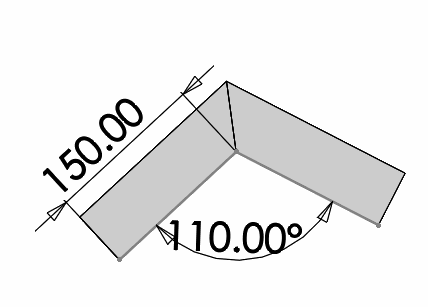

Dimensions in the sketch of weldment feature

This VBA macro demonstrates how to traverse all dimensions of the features from active SOLIDWORKS document or component (if selected) in the assembly using SOLIDWORKS API.

Macro will output the name of the dimension and the value in the current system units into the Immediate Window of VBA.

D1@Sketch1=0.15
D2@Sketch1=2.0
RI@Sketch11=0.008

The macro will exclude all duplicate dimensions as in some cases (e.g. weldment features) the same dimension may be present in the sketch and in the structural member feature as the same time

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr

        Set swSelMgr = swModel.SelectionManager

        Dim swComp As SldWorks.Component2

        Set swComp = swSelMgr.GetSelectedObjectsComponent3(1, -1)

        If Not swComp Is Nothing Then
            TraverseDimensions swComp.FirstFeature
        Else
            TraverseDimensions swModel.FirstFeature
        End If

    Else
        MsgBox "Please open document"
    End If

End Sub

Sub TraverseDimensions(startFeat As SldWorks.Feature)

    Dim vFeats As Variant
    vFeats = GetAllFeatures(startFeat)

    Dim vDispDims As Variant
    vDispDims = GetAllDimensions(vFeats)

    If Not IsEmpty(vDispDims) Then

        Dim i As Integer

        For i = 0 To UBound(vDispDims)

            Dim swDispDim As SldWorks.DisplayDimension
            Set swDispDim = vDispDims(i)

            Dim swDim As SldWorks.Dimension
            Set swDim = swDispDim.GetDimension2(0)

            Dim val As Double
            val = swDim.GetSystemValue3(swInConfigurationOpts_e.swThisConfiguration, Empty)(0)

            Debug.Print swDim.GetNameForSelection() & "=" & val

        Next

    End If

End Sub

Function GetAllDimensions(vFeats As Variant) As Variant

    Dim swDimsColl As Collection
    Set swDimsColl = New Collection

    Dim i As Integer

    For i = 0 To UBound(vFeats)

        Dim swFeat As SldWorks.Feature
        Set swFeat = vFeats(i)

        Dim swDispDim As SldWorks.DisplayDimension
        Set swDispDim = swFeat.GetFirstDisplayDimension

        While Not swDispDim Is Nothing

            If Not Contains(swDimsColl, swDispDim) Then
                swDimsColl.Add swDispDim
            End If

            Set swDispDim = swFeat.GetNextDisplayDimension(swDispDim)
        Wend

    Next

    GetAllDimensions = CollectionToArray(swDimsColl)

End Function

Function GetAllFeatures(startFeat As SldWorks.Feature) As Variant

    Dim swProcFeatsColl As Collection
    Set swProcFeatsColl = New Collection

    Dim swFeat As SldWorks.Feature
    Set swFeat = startFeat

    While Not swFeat Is Nothing

        If swFeat.GetTypeName2() <> "HistoryFolder" Then

            If Not Contains(swProcFeatsColl, swFeat) Then
                swProcFeatsColl.Add swFeat
            End If

            CollectAllSubFeatures swFeat, swProcFeatsColl

        End If

        Set swFeat = swFeat.GetNextFeature

    Wend

    GetAllFeatures = CollectionToArray(swProcFeatsColl)

End Function

Sub CollectAllSubFeatures(parentFeat As SldWorks.Feature, procFeatsColl As Collection)

    Dim swSubFeat As SldWorks.Feature
    Set swSubFeat = parentFeat.GetFirstSubFeature

    While Not swSubFeat Is Nothing

        If Not Contains(procFeatsColl, swSubFeat) Then
            procFeatsColl.Add swSubFeat
        End If

        CollectAllSubFeatures swSubFeat, procFeatsColl
        Set swSubFeat = swSubFeat.GetNextSubFeature

    Wend

End Sub

Function CollectionToArray(coll As Collection) As Variant

    If coll.Count() > 0 Then

        Dim arr() As Object

        ReDim arr(coll.Count() - 1)
        Dim i As Integer

        For i = 1 To coll.Count
            Set arr(i - 1) = coll(i)
        Next

        CollectionToArray = arr

    Else
        CollectionToArray = Empty
    End If

End Function

Function Contains(coll As Collection, item As Object) As Boolean

    Dim i As Integer

    For i = 1 To coll.Count
        If coll.item(i) Is item Then
            Contains = True
            Exit Function
        End If
    Next

    Contains = False

End Function
