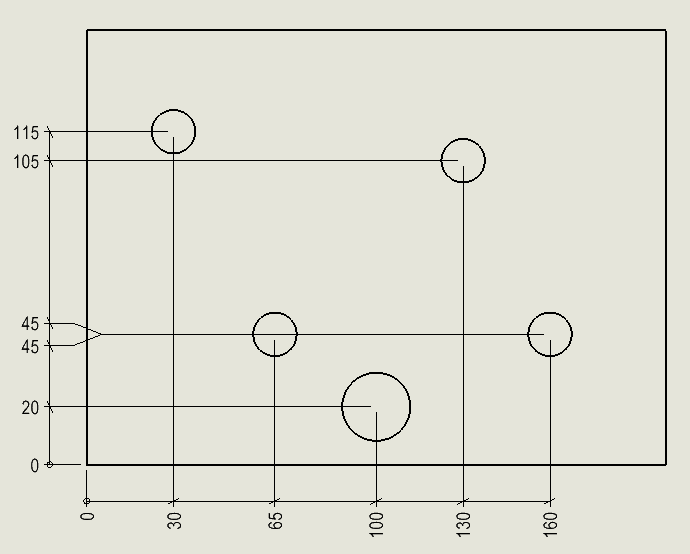

Macro to add horizontal and vertical ordinate dimensions for holes in SOLIDWORKS drawings view

Dim swApp As SldWorks.SldWorks
Dim swMathUtils As SldWorks.MathUtility

Sub main()

    Set swApp = Application.SldWorks

    Set swMathUtils = swApp.GetMathUtility

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    Dim swView As SldWorks.view

    Set swView = swModel.SelectionManager.GetSelectedObject6(1, -1)

    If swView Is Nothing Then
        Err.Raise vbError, "", "Please select view"
    End If

    Dim swOrigVertex As SldWorks.vertex
    Set swOrigVertex = FindOriginVertex(swView)

    Dim vHoles As Variant
    vHoles = FindHoles(swView)

    If IsEmpty(vHoles) Then
        Err.Raise vbError, "", "No holes found"
    End If

    Dim vOutline As Variant
    vOutline = swView.GetOutline

    Dim offset As Double
    offset = (vOutline(2) - vOutline(1)) * 0.1

    AddOrdinateDimensions swModel, swOrigVertex, vHoles, swAddOrdinateDims_e.swHorizontalOrdinate, 0, vOutline(1) - offset
    AddOrdinateDimensions swModel, swOrigVertex, vHoles, swAddOrdinateDims_e.swVerticalOrdinate, vOutline(0) - offset, 0

End Sub

Sub AddOrdinateDimensions(model As SldWorks.ModelDoc2, origVertex As SldWorks.vertex, holes As Variant, dimType As swAddOrdinateDims_e, x As Double, y As Double)

    Dim swSels() As SldWorks.Entity
    ReDim swSels(1 + UBound(holes))

    Set swSels(0) = origVertex

    Dim i As Integer

    For i = 0 To UBound(holes)
        Set swSels(i + 1) = holes(i)
    Next

    If model.Extension.MultiSelect2(swSels, False, Nothing) = UBound(swSels) + 1 Then
        Dim res As Long
        res = model.Extension.AddOrdinateDimension(dimType, x, y, 0)

        model.SetPickMode

        If res <> swCreateOrdDimError_e.swCreateOrdDimErr_Success Then
            Err.Raise vbError, "", "Failed to add ordinate dimension"
        End If
    Else
        Err.Raise vbError, "", "Failed to select entities"
    End If

End Sub


Function FindOriginVertex(view As SldWorks.view) As SldWorks.vertex

    Dim vComps As Variant

    vComps = view.GetVisibleComponents

    Dim swViewTransform As SldWorks.MathTransform
    Set swViewTransform = view.ModelToViewTransform

    Dim swOriginVertex As SldWorks.vertex

    If Not IsEmpty(vComps) Then

        Dim i As Integer

        For i = 0 To UBound(vComps)

            Dim swComp As SldWorks.Component2

            Set swComp = vComps(i)

            Dim vVisEnts As Variant
            vVisEnts = view.GetVisibleEntities2(swComp, swViewEntityType_e.swViewEntityType_Vertex)

            Dim j As Integer

            For j = 0 To UBound(vVisEnts)
                Dim swVertex As SldWorks.vertex
                Set swVertex = vVisEnts(j)

                If swOriginVertex Is Nothing Then
                    Set swOriginVertex = swVertex
                Else
                    Dim vCurOrigCoord As Variant
                    vCurOrigCoord = GetVertexCoordinate(swOriginVertex, swViewTransform)

                    Dim vCoord As Variant
                    vCoord = GetVertexCoordinate(swVertex, swViewTransform)

                    If vCoord(0) < vCurOrigCoord(0) And vCoord(1) < vCurOrigCoord(1) Then
                        Set swOriginVertex = swVertex
                    End If

                End If

            Next

        Next

    End If

    If swOriginVertex Is Nothing Then
        Err.Raise vbError, "", "Failed to find origin vertex"
    End If

    Set FindOriginVertex = swOriginVertex

End Function

Function GetVertexCoordinate(vertex As SldWorks.vertex, transform As SldWorks.MathTransform) As Variant

    Dim vCoordPt As Variant
    vCoordPt = vertex.GetPoint()

    Dim swMathPt As SldWorks.MathPoint
    Set swMathPt = swMathUtils.CreatePoint(vCoordPt)

    Set swMathPt = swMathPt.MultiplyTransform(transform)

    GetVertexCoordinate = swMathPt.ArrayData

End Function

Function FindHoles(view As SldWorks.view) As Variant

    Dim vComps As Variant

    vComps = view.GetVisibleComponents

    Dim swHoles() As SldWorks.Edge

    If Not IsEmpty(vComps) Then

        Dim i As Integer

        For i = 0 To UBound(vComps)

            Dim swComp As SldWorks.Component2

            Set swComp = vComps(i)

            Dim vVisEnts As Variant
            vVisEnts = view.GetVisibleEntities2(swComp, swViewEntityType_e.swViewEntityType_Edge)

            Dim j As Integer

            For j = 0 To UBound(vVisEnts)

                Dim swEdge As SldWorks.Edge
                Set swEdge = vVisEnts(j)

                Dim swCurve As SldWorks.Curve
                Set swCurve = swEdge.GetCurve

                If False <> swCurve.IsCircle() Then

                    Dim isClosed As Boolean
                    swCurve.GetEndParams -1, -1, isClosed, -1

                    If False <> isClosed Then

                        If (Not swHoles) = -1 Then
                            ReDim swHoles(0)
                        Else
                            ReDim Preserve swHoles(UBound(swHoles) + 1)
                        End If

                        Set swHoles(UBound(swHoles)) = swEdge

                    End If

                End If

            Next

        Next

    End If

    If (Not swHoles) = -1 Then
        FindHoles = Empty
    Else
        FindHoles = swHoles
    End If

End Function
