This VBA macro copies the specified or all SOLIDWORKS custom properties from the sheet metal or weldment cut-list item to model or configuration.

Properties from the first found cut-list will be copied.

Configuration

Macro can be configured by changing the constants

Const ALL_CONFS As Boolean = False 'True to process all configurations
Const PROCESS_TOP_LEVEL_CONFIGS As Boolean = False 'True to process top level configurations
Const PROCESS_CHILDREN_CONFIGS As Boolean = True 'True to process children configurations

Properties Scope

CONF_SPEC_PRP constant sets the target properties scope.

  • True to copy properties to configuration specific tab
  • False to copy to Custom tab

Properties Source

COPY_RES_VAL constant sets the property source

  • True to copy resolved values

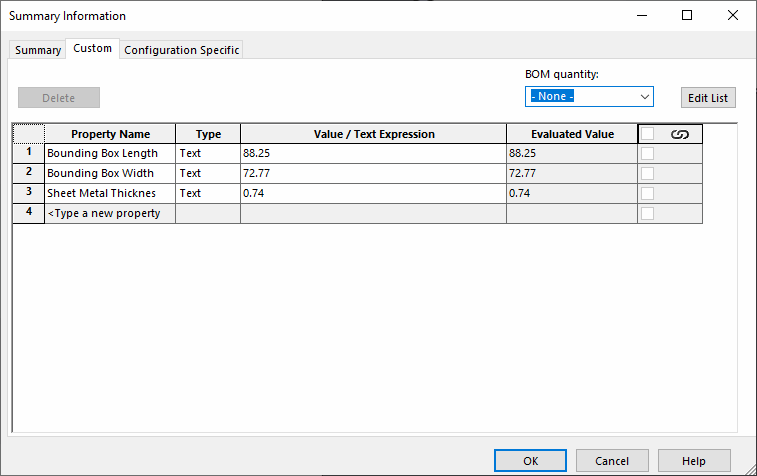

Resolved values copied to custom properties
Resolved values copied to custom properties

  • False to copy expressions

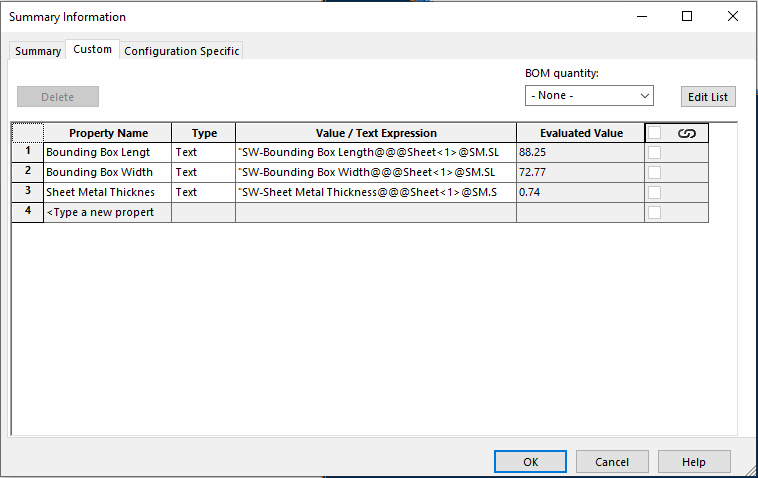

Expression are copied to custom properties
Expression are copied to custom properties

Properties List

Dim SRC_PROPERTIES As Variant
Dim TARG_PROPERTIES As Variant

SRC_PROPERTIES array contains list of property names to copy, TARG_PROPERTIES array contains list of properties to copy to

Copy specified properties

Sub Init(Optional dummy As Variant = Empty)
    SRC_PROPERTIES = Array("Prp1", "Prp2", "Prp3") 'Copy Prp1, Prp2, Prp3
    TARG_PROPERTIES = Array("TargPrp1", "Prp2", "TargPrp3") 'Copy to TargPrp1, Prp2, TargPrp3
End Sub

Copy all properties

Sub Init(Optional dummy As Variant = Empty)
    SRC_PROPERTIES = Empty
    TARG_PROPERTIES = Empty
End Sub

Const CONF_SPEC_PRP As Boolean = True
Const COPY_RES_VAL As Boolean = True

Const ALL_CONFS As Boolean = False
Const PROCESS_TOP_LEVEL_CONFIGS As Boolean = False
Const PROCESS_CHILDREN_CONFIGS As Boolean = True

Dim SRC_PROPERTIES As Variant
Dim TARG_PROPERTIES As Variant

Dim swApp As SldWorks.SldWorks

Sub Init(Optional dummy As Variant = Empty)

    SRC_PROPERTIES = Array("Bounding Box Length", "Bounding Box Width", "Sheet Metal Thickness") 'list of custom properties to copy or Empty to copy all
    TARG_PROPERTIES = Array("Length", "Width", "Thickness") 'list of target custom property namesor Empty to use original name

End Sub

Sub main()

try_:

    On Error GoTo catch_

    Init

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc

    Dim activeConfName As String
    activeConfName = swModel.ConfigurationManager.ActiveConfiguration.Name

    Dim vConfNames As Variant
    vConfNames = GetConfigurations(swModel)

    Dim i As Integer

    For i = 0 To UBound(vConfNames)

        swModel.ShowConfiguration2 CStr(vConfNames(i))

        Dim swCutListPrpMgr As SldWorks.CustomPropertyManager
        Set swCutListPrpMgr = GetCutListPropertyManager(swModel)

        If Not swCutListPrpMgr Is Nothing Then

            Dim swTargetPrpMgr As SldWorks.CustomPropertyManager

            If CONF_SPEC_PRP Then
                Set swTargetPrpMgr = swModel.ConfigurationManager.ActiveConfiguration.CustomPropertyManager
            Else
                Set swTargetPrpMgr = swModel.Extension.CustomPropertyManager("")
            End If

            CopyProperties swCutListPrpMgr, swTargetPrpMgr, SRC_PROPERTIES, TARG_PROPERTIES

        Else
            Err.Raise vbError, "", "Cut-list is not found"
        End If

    Next

    GoTo finally_

catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:

    If activeConfName <> "" Then
        swModel.ShowConfiguration2 activeConfName
    End If

End Sub

Function GetCutListPropertyManager(model As SldWorks.ModelDoc2) As SldWorks.CustomPropertyManager

    Dim swFeat As SldWorks.Feature

    Set swFeat = model.FirstFeature

    While Not swFeat Is Nothing

        If swFeat.GetTypeName2() = "CutListFolder" Then

            Dim swBodyFolder As SldWorks.BodyFolder
            Set swBodyFolder = swFeat.GetSpecificFeature2

            Dim bodyCount As Long
            bodyCount = swBodyFolder.GetBodyCount

            If bodyCount <> 0 Then
                Set GetCutListPropertyManager = swFeat.CustomPropertyManager
                Exit Function
            End If
        End If

        Set swFeat = swFeat.GetNextFeature

    Wend

End Function

Sub CopyProperties(srcPrpMgr As SldWorks.CustomPropertyManager, targPrpMgr As SldWorks.CustomPropertyManager, vSrcPrpNames As Variant, vTargPrpNames As Variant)

    If IsEmpty(vSrcPrpNames) Then
        vSrcPrpNames = srcPrpMgr.GetNames()
        vTargPrpNames = vSrcPrpNames
    End If

    If IsEmpty(vTargPrpNames) Then
        vTargPrpNames = vSrcPrpNames
    End If

    If Not IsEmpty(vSrcPrpNames) Then

        If UBound(vSrcPrpNames) = UBound(vTargPrpNames) Then

            For i = 0 To UBound(vSrcPrpNames)

                Dim srcPrpName As String

                srcPrpName = vSrcPrpNames(i)

                Dim prpVal As String
                Dim prpResVal As String

                srcPrpMgr.Get5 srcPrpName, False, prpVal, prpResVal, False

                Dim targVal As String
                targVal = IIf(COPY_RES_VAL, prpResVal, prpVal)

                Dim targPrpName As String

                targPrpName = vTargPrpNames(i)

                targPrpMgr.Add2 targPrpName, swCustomInfoType_e.swCustomInfoText, targVal
                targPrpMgr.Set targPrpName, targVal

            Next
        Else
            Err.Raise vbError, "", "Target proeprties name do not match source"
        End If

    Else
        Err.Raise vbError, "", "No properties to copy"
    End If

End Sub

Function GetConfigurations(model As SldWorks.ModelDoc2) As Variant

    Dim confNames() As String

    If ALL_CONFS And CONF_SPEC_PRP Then

        Dim vConfNames As Variant
        vConfNames = model.GetConfigurationNames

        Dim i As Integer

        For i = 0 To UBound(vConfNames)

            Dim confName As String
            confName = CStr(vConfNames(i))

            Dim swConf As SldWorks.Configuration
            Set swConf = model.GetConfigurationByName(confName)

            If swConf.Type = swConfigurationType_e.swConfiguration_Standard Then

                If (PROCESS_TOP_LEVEL_CONFIGS And swConf.GetParent() Is Nothing) Or (PROCESS_CHILDREN_CONFIGS And Not swConf.GetParent() Is Nothing) Then
                    If (Not confNames) = -1 Then
                        ReDim confNames(0)
                    Else
                        ReDim Preserve confNames(UBound(confNames) + 1)
                    End If

                    confNames(UBound(confNames)) = confName

                End If

            End If

        Next

    Else
        ReDim confNames(0)
        confNames(0) = model.ConfigurationManager.ActiveConfiguration.Name
    End If

    GetConfigurations = confNames

End Function
