Run Xpress products (e.g. DriveWorks) using SOLIDWORKS API

Edit ArticleEdit Article

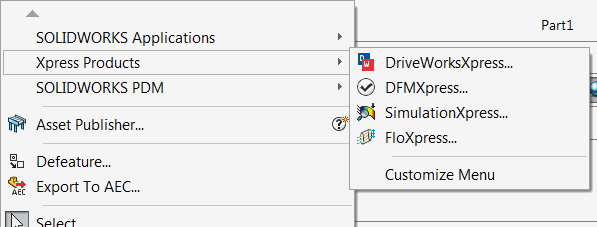

Menu for Xpress products
Menu for Xpress products

This example demonstrates how to run the xpress products (DriveWorks, DFM, Simulation, Flo) using SOLIDWORKS API. This is equivalent to clicking the menu command.

#If VBA7 Then
     Private Declare PtrSafe Function SendMessage Lib "User32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal wMsg As Long, ByVal wParam As Long, lParam As Any) As Long
#Else
     Private Declare Function SendMessage Lib "User32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal wMsg As Long, ByVal wParam As Long, lParam As Any) As Long
#End If

Enum XpressProducts_e
    DriveWorksXpress = 54423
    DFMXpress = 54424
    SimulationXpress = 38155
    FloXpress = 54422
End Enum

Dim swApp As SldWorks.SldWorks

Sub main()

     Set swApp = Application.SldWorks

     RunXpressProduct swApp, DriveWorksXpress
     RunXpressProduct swApp, DFMXpress
     RunXpressProduct swApp, SimulationXpress
     RunXpressProduct swApp, FloXpress

 End Sub

Sub RunXpressProduct(swApp As SldWorks.SldWorks, product As XpressProducts_e)

    If SupportsEnvironment(swApp, product) Then

        Const WM_COMMAND As Long = &H111

        Dim swFrame As SldWorks.Frame

        Set swFrame = swApp.Frame

        SendMessage swFrame.GetHWnd(), WM_COMMAND, CLng(product), 0

    End If

End Sub

Function SupportsEnvironment(swApp As SldWorks.SldWorks, product As XpressProducts_e) As Boolean

    Dim swActiveModel As SldWorks.ModelDoc2
    Set swActiveModel = swApp.ActiveDoc

    Dim swDocType As swDocumentTypes_e

    If swActiveModel Is Nothing Then
        swDocType = swDocNONE
    Else
        swDocType = swActiveModel.GetType
    End If

    Select Case product
        Case XpressProducts_e.DFMXpress
            If swDocType <> swDocPART Then
                MsgBox "DFMXpress can only run in parts"
                SupportsEnvironment = False
                Exit Function
            End If
        Case XpressProducts_e.SimulationXpress
            If swDocType <> swDocPART And swDocType <> swDocASSEMBLY Then
                MsgBox "SimulationXpress can only run in parts or assemblies"
                SupportsEnvironment = False
                Exit Function
            End If
        Case XpressProducts_e.FloXpress
            If swDocType <> swDocPART And swDocType <> swDocASSEMBLY Then
                MsgBox "FloXpress can only run in parts or assemblies"
                SupportsEnvironment = False
                Exit Function
            End If
    End Select

    SupportsEnvironment = True

End Function
